Product Details:
Payment & Shipping Terms:
|
| Max Winding Diameter: | Ø508/1100mm | Max Weight Of Coil: | 2000kg |
|---|---|---|---|
| Max Rolling Speed: | 250m/min | Machine Weight: | According To Machine Configuration |
| Max Rolling Force: | ≤4000KN |
Full Automatic Continuous 6hi Reversible Cold Rolling Mill Machine High Speed

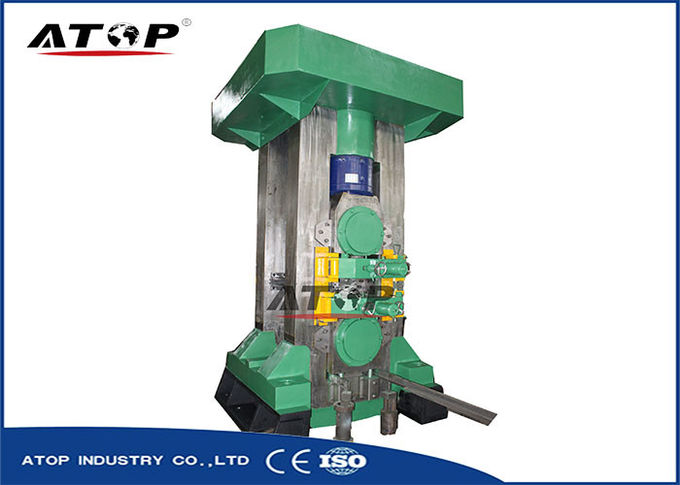

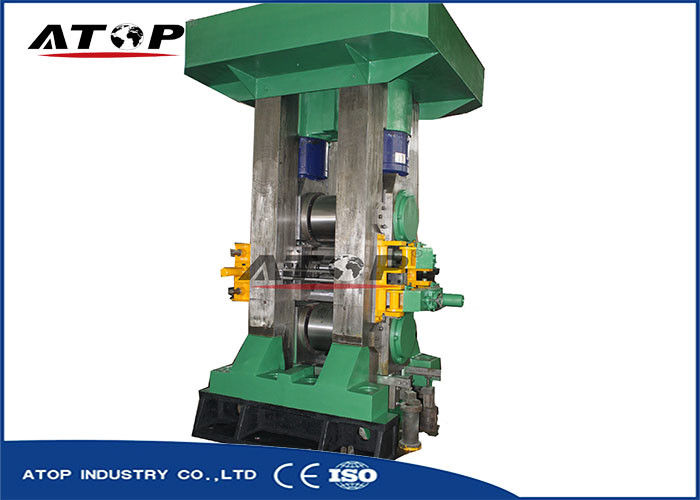

The six-roll cold rolling mill is composed of frame, working roll, intermediate roll, supporting roll, pressing
down device, balancing bending roll cylinder block, emulsion injection device, connecting shaft fixing
device, roller changing track, rolling mill platform, escalator, cover, etc.
It is used for rolling hot rolled strip at normal temperature and finally rolled into strip with ideal thickness
after several passes.The cold rolling mill is a six - roller reversible cold rolling mill using hydraulic pressure
down and automatic control system with thickness.The machine is driven by middle roller.The middle roller
USES hydraulic cylinder to control the axial movement, the movement quantity is 100mm.Working roll and
middle roll are equipped with hydraulic bending roll device to cooperate with middle roll movement control
board.
Left winder (unloading trolley)→feeding process platform (steering speed measuring roller, thickness
gauge, water squeezing roller, guiding position)→four-roll rolling mill→discharge processing platform
(squeezing roller, thickness gauge, steering speed measurement) Roll)→Right Winder (Unloading Cart)
| Product name | ATOP Full Automatic Continuous 6-high Reversible 6-hi Cold Rolling Mill |
| Billet specification | ≤0.9*420mm |
| Entry width | ≥0.05-0.3*420mm |
| Max winding diameter | Ø508/1100mm |
| Max rolling force | ≤3000KN |
| Dia. of back-up roll | Ø450mm |
| Width of back-up roller | 400mm |
| Width of exit | B≤175mm |
| O.D. of coil | 1600mm |
| Weight of coil | 2000kg |
| Rolling speed | ≤250m/min |
| Finishing rolling exit thickness | H≥0.4mm |
| Work roll material |
70Cr3MoV |
A. provide all pipelines, cables and wires of the equipment (except the cabinet).
B. design and construction of equipment foundation.
C. Mounting plates required.
D. Various pipelines and related joints required by hydraulic station, lean oil station and process lubrication
station.
E. Provide hydraulic oil, emulsion, gear oil, steel strip, lubricating oil, grease, etc. required for debugging.
F. Supply voltage power required for equipment operation.
G. Compressed air source.
H. The cost shall be borne by the buyer for the accommodation and working convenience of the supplier's
on-site personnel.
