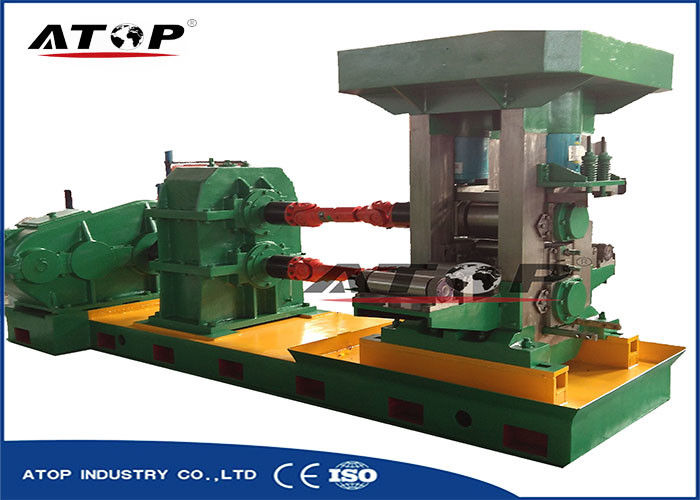

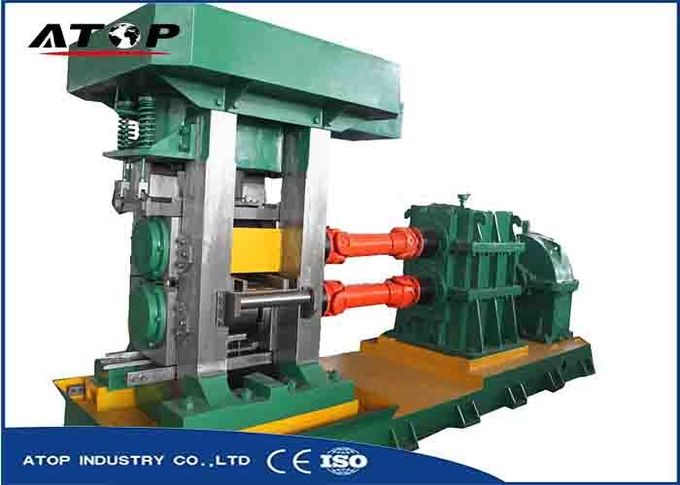

Rolling Inner Diameter 510MM Four High Rolling Mill Equipment For Red Copper

Rolling Inner Diameter 510MM Four High Rolling Mill Equipment For Red Copper

Cold rolling mill compared with single rack high production efficiency, high degree of automation, good

quality , suitable for high -volume production . Based on product characteristics and customer requirements,

our company can provide two racks , three racks , four racks , five-stand tandem cold mill , etc.using a

hydraulic pressure AGC, automatic thickness measurement . Endless rolling , automatic welding

technology.

We can design and select model according to customer material, specification and requirement

The four-high cold rolling mill is divided into four-roll one-way (mechanical or AGC) cold rolling mill and four-

roll reversible (mechanical or AGC) cold rolling mill, which is suitable for rolling the cold rolling of plates and

strips of carbon steel, stainless steel, copper, aluminum, gold, silver, silver and other materials.

The rolling speed is from several meters per minute to six or seven hundred meters per minute.

The four-roll cold rolling mill is composed of uncoiler, rewinding machine, process platform, hydraulic shear,

roll changing device, hydraulic trolley, hydraulic station, control system and so on.

For example, plain carbon steel can be rolled with maximum width of 1200mm, 4.0mm feed and 0.2mm

finished products.

Feeding trolley→Hydraulic quadruple expansion rewinder↔Feeding guide↔Four-high main

mill↔Discharging guide↔Hydraulic quadruple expansion rewinder→Unloading trollery

1. The unit shall be installed at the construction site of party a, and party b shall dispatch relevant personnel

to provide on-site technical services.

2. The warranty period is 12 months after the normal equipment debugging and acceptance.

3. During the warranty period, if the equipment fails, party b shall send technicians to the site to deal with or

assist in the solution, and repair or replace the parts free of charge for the damage caused by non-human

factors.

4. Upon expiration of the warranty period, party b shall, as far as possible, provide party a with

convenience, help to solve problems arising from the operation of the equipment and provide sincere

service.

5. Preferential supply of spare parts.
