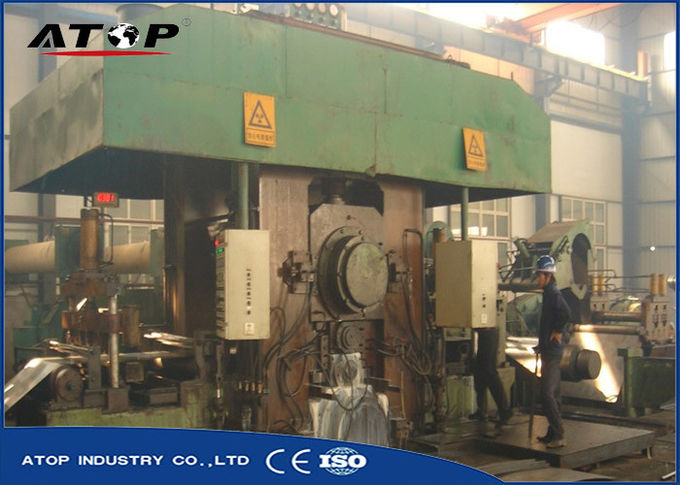

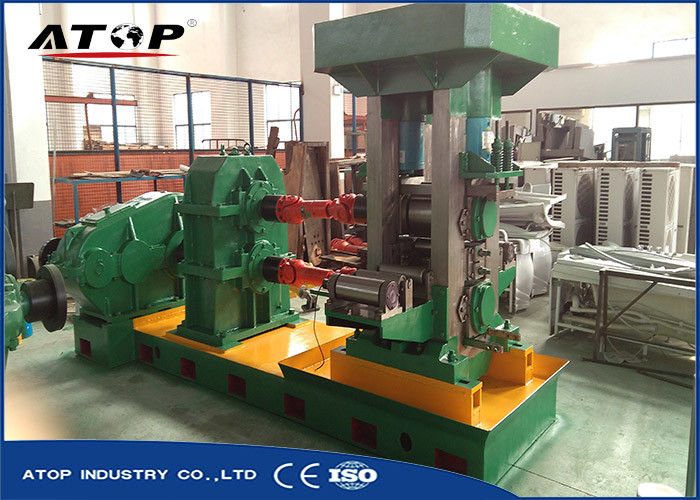

Four - Roll Hydraulic AGC Precision Cold Strip Mill With Work Roll Drive





Four - Roll Hydraulic AGC Precision Cold Strip Mill With Work Roll Drive









It is used for rolling hot rolled strip at normal temperature and finally rolled into strip with ideal thickness



after several passes.The cold rolling mill is a four-roller reversible cold rolling mill, which adopts hydraulic



pressure down and automatic control system with thickness.The machine is driven by working roller.The



working roller is equipped with hydraulic bending roll device.





Suitable for mild steel, stainless steel and special steel.

Transmission method: working rollers transmission and supporting rollers transmission.

Control methods: common electric pressing down and hydraulic pressing down through AGC system.

Equipped with hydraulic bending installations of working rollers which can fast adjust the gibbous degree of



rollers to change the distribution of touching pressure between rollers in order to control the plate form.


Simple structure, easy maintenance and less investment.


It is equipped with AGC system to get high precision, which is especially suitable for rolling high precision



requirements of cold rolled strips





We can design and select model according to customer material, specification and requirement





Product name	ATOP Four-Roll Hydraulic AGC Precision Cold Strip Mill With Work Roll Drive
Entry thickness	≤9.0mm
Entry width	≤175mm
Finished product thickness	≥0.4mm
Finished product width	≤175mm
Max winding diameter	Ø510/1600mm
Weight of coil	≤3000kg
Max rolling force	≤3000KN
Winding tension	≤80KN
Dia. of back-up roll	Ø450mm
Rolling speed	≤200m/min
Working roll size	Ø300/Ø280*600mm
Work roll material	70Cr3MoV
Back-up roll size	Ø650/Ø610*550mm
Back-up roll material	70Cr3MoV







Feeding trolley→Hydraulic quadruple expansion rewinder↔Feeding guide↔Four-high main



mill↔Discharging guide↔Hydraulic quadruple expansion rewinder→Unloading trollery





1. The unit shall be installed at the construction site of party a, and party b shall dispatch relevant personnel

to provide on-site technical services.

2. The warranty period is 12 months after the normal equipment debugging and acceptance.

3. During the warranty period, if the equipment fails, party b shall send technicians to the site to deal with or

assist in the solution, and repair or replace the parts free of charge for the damage caused by non-human

factors.

4. Upon expiration of the warranty period, party b shall, as far as possible, provide party a with

convenience, help to solve problems arising from the operation of the equipment and provide sincere

service.

5. Preferential supply of spare parts.







A. provide all pipelines, cables and wires of the equipment (except the cabinet).



B. design and construction of equipment foundation.



C. Mounting plates required.



D. Various pipelines and related joints required by hydraulic station, lean oil station and process lubrication



station.



E. Provide hydraulic oil, emulsion, gear oil, steel strip, lubricating oil, grease, etc. required for debugging.



F. Supply voltage power required for equipment operation.



G. Compressed air source.



H. The cost shall be borne by the buyer for the accommodation and working convenience of the supplier's



on-site personnel.
