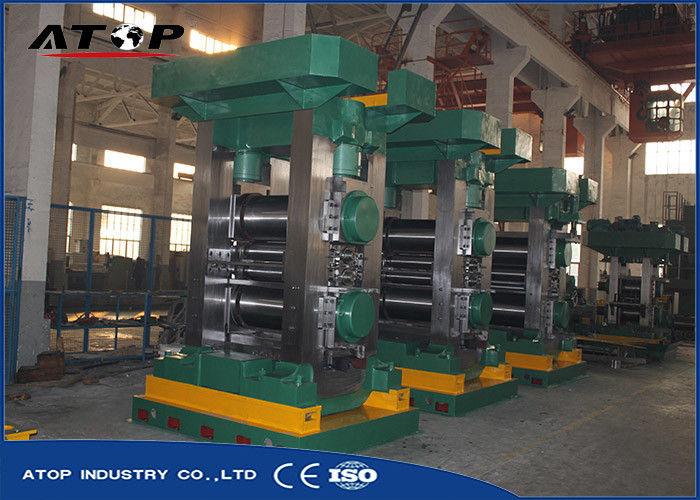

Steel Strip 4 High Rolling Mill , Cold Rolling Plant With PLC Controller


Steel Strip 4 High Rolling Mill , Cold Rolling Plant With PLC Controller


Feeding trolley→Hydraulic quadruple expansion rewinder↔Feeding guide↔Four-high main

mill↔Discharging guide↔Hydraulic quadruple expansion rewinder→Unloading trollery




It is used for rolling hot rolled strip at normal temperature and finally rolled into strip with ideal thickness

after several passes.The cold rolling mill is a four-roller reversible cold rolling mill, which adopts hydraulic

pressure down and automatic control system with thickness.The machine is driven by working roller.The

working roller is equipped with hydraulic bending roll device.

Suitable for mild steel, stainless steel and special steel.

Transmission method: working rollers transmission and supporting rollers transmission.

Control methods: common electric pressing down and hydraulic pressing down through AGC system.

Equipped with hydraulic bending installations of working rollers which can fast adjust the gibbous degree of

rollers to change the distribution of touching pressure between rollers in order to control the plate form.


Simple structure, easy maintenance and less investment.


It is equipped with AGC system to get high precision, which is especially suitable for rolling high precision

requirements of cold rolled strips

We can design and select model according to customer material, specification and requirement



1. The unit shall be installed at the construction site of party a, and party b shall dispatch relevant personnel

to provide on-site technical services.

2. The warranty period is 12 months after the normal equipment debugging and acceptance.

3. During the warranty period, if the equipment fails, party b shall send technicians to the site to deal with or

assist in the solution, and repair or replace the parts free of charge for the damage caused by non-human

factors.

4. Upon expiration of the warranty period, party b shall, as far as possible, provide party a with

convenience, help to solve problems arising from the operation of the equipment and provide sincere

service.

5. Preferential supply of spare parts.



A. provide all pipelines, cables and wires of the equipment (except the cabinet).

B. design and construction of equipment foundation.

C. Mounting plates required.

D. Various pipelines and related joints required by hydraulic station, lean oil station and process lubrication

station.

E. Provide hydraulic oil, emulsion, gear oil, steel strip, lubricating oil, grease, etc. required for debugging.

F. Supply voltage power required for equipment operation.

G. Compressed air source.

H. The cost shall be borne by the buyer for the accommodation and working convenience of the supplier's

on-site personnel.
