It is used for rolling hot rolled strip at normal temperature and finally rolled into strip with ideal thickness

after several passes.The cold rolling mill is a four - roller reversible cold rolling mill using hydraulic pressure

down and automatic control system with thickness.The machine is driven by supporting roller.Working roller

is equipped with hydraulic bending roll device.

Left winder (unloading trolley)→feeding process platform (steering speed measuring roller, thickness

gauge, water squeezing roller, guiding position)→four-roll rolling mill→discharge processing platform

(squeezing roller, thickness gauge, steering speed measurement) Roll)→Right Winder (Unloading Cart)

The four-high cold rolling mill is divided into four-roll one-way (mechanical or AGC) cold rolling mill and four-

roll reversible (mechanical or AGC) cold rolling mill, which is suitable for rolling the cold rolling of plates and

strips of carbon steel, stainless steel, copper, aluminum, gold, silver, silver and other materials.

The rolling speed is from several meters per minute to six or seven hundred meters per minute.

The four-roll cold rolling mill is composed of uncoiler, rewinding machine, process platform, hydraulic shear,

roll changing device, hydraulic trolley, hydraulic station, control system and so on.

For example, plain carbon steel can be rolled with maximum width of 1200mm, 4.0mm feed and 0.2mm

finished products.

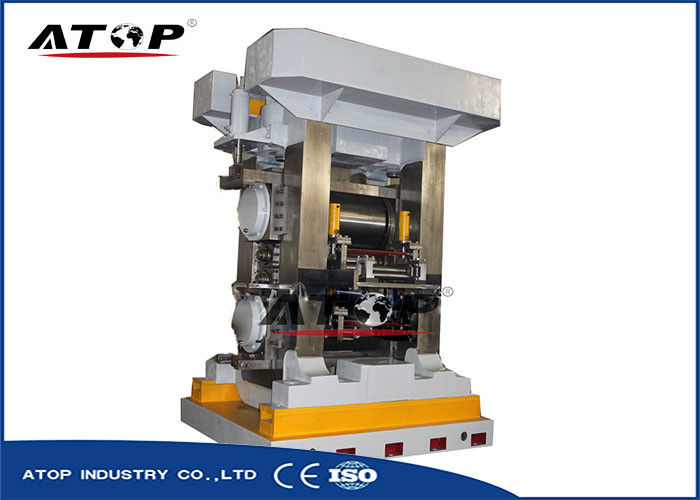

Four-roll cold rolling mill consists of frame, work roll system, backup roll system, pressing device, balance

bending roller block, emulsion injection device, shaft fixing device, roll change track, rolling mill platform,

escalator, cover, etc.

A. provide all pipelines, cables and wires of the equipment (except the cabinet).

B. design and construction of equipment foundation.

C. Mounting plates required.

D. Various pipelines and related joints required by hydraulic station, lean oil station and process lubrication station.

E. Provide hydraulic oil, emulsion, gear oil, steel strip, lubricating oil, grease, etc. required for debugging.

F. Supply voltage power required for equipment operation.

G. Compressed air source.

H. The cost shall be borne by the buyer for the accommodation and working convenience of the supplier's on-site personnel.
