Hydraulic Four Roller Reversing Cold Rolling Mill Equipment For Bronze

Hydraulic Four Roller Reversing Cold Rolling Mill Equipment For Bronze

Left winder (unloading trolley)→feeding process platform (steering speed measuring roller, thickness

gauge, water squeezing roller, guiding position)→four-roll rolling mill→discharge processing platform

(squeezing roller, thickness gauge, steering speed measurement) Roll)→Right Winder (Unloading Cart)

The four-high cold rolling mill is divided into four-roll one-way (mechanical or AGC) cold rolling mill and four-

roll reversible (mechanical or AGC) cold rolling mill, which is suitable for rolling the cold rolling of plates and

strips of carbon steel, stainless steel, copper, aluminum, gold, silver, silver and other materials.

The rolling speed is from several meters per minute to six or seven hundred meters per minute.

The four-roll cold rolling mill is composed of uncoiler, rewinding machine, process platform, hydraulic shear,

roll changing device, hydraulic trolley, hydraulic station, control system and so on.

For example, plain carbon steel can be rolled with maximum width of 1200mm, 4.0mm feed and 0.2mm

finished products.

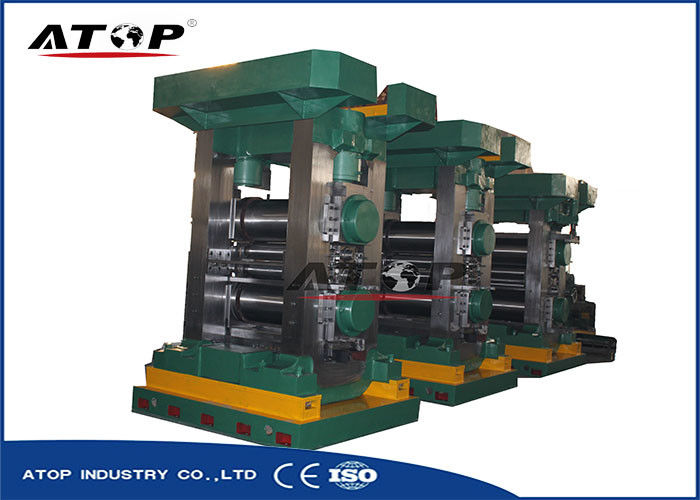

Four-roll cold rolling mill consists of frame, work roll system, backup roll system, pressing device, balance

bending roller block, emulsion injection device, shaft fixing device, roll change track, rolling mill platform,

escalator, cover, etc.

Delivery of technical data:

Party b shall provide the following information according to the manufacturing and construction progress of

the equipment:

1. Process layout and basic drawings of the equipment

2. Equipment maintenance instruction

3. Vulnerable parts drawing, spare parts detail or drawing of equipment

4. Electrical and hydraulic schematic diagram

Technical service, after-sales service commitment

1. The unit shall be installed at the construction site of party a, and party b shall dispatch relevant personnel

to provide on-site technical services.


2. The warranty period is 12 months after the normal equipment debugging and acceptance.


3. During the warranty period, if the equipment fails, party b shall send technicians to the site to deal with or

assist in the solution, and repair or replace the parts free of charge for the damage caused by non-human

factors.


4. Upon expiration of the warranty period, party b shall, as far as possible, provide party a with

convenience, help to solve problems arising from the operation of the equipment and provide sincere

service.


5. Preferential supply of spare parts.
