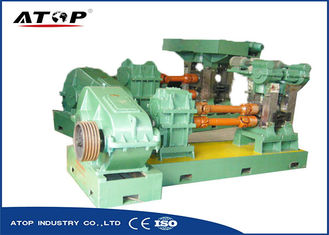

Low Noise 2- High Cold Rolling Mill Machine For Stainless Steel / Plain Carbon Steel

Low Noise 2- High Cold Rolling Mill Machine For Stainless Steel / Plain Carbon Steel

Two - high cold rolling mill is suitable for rolling the cold rolled sheet and strip of carbon steel, stainless

steel, copper, aluminum, gold, silver and silver.At present, our company produces two - roll cold rolling mill

by mechanical pressure and AGC pressure two.

The equipment of two-high cold mill is composed of uncoiler, roller table, coiler, hydraulic station and control

system.For example, copper can be rolled up to 450mm wide, 12mm feed and 5mm finished.

Suitable for mild steel, stainless steel and special steel.

Transmission method: working rollers transmission and supporting rollers transmission.

Control methods: common electric pressing down and hydraulic pressing down through AGC system.

Equipped with hydraulic bending installations of working rollers which can fast adjust the gibbous degree of

rollers to change the distribution of touching pressure between rollers in order to control the plate form.


Simple structure, easy maintenance and less investment.


It is equipped with AGC system to get high precision, which is especially suitable for rolling high precision

requirements of cold rolled strips

Feeding trolley→Hydraulic quadruple expansion rewinder↔Feeding guide↔Four-high main

mill↔Discharging guide↔Hydraulic quadruple expansion rewinder→Unloading trollery



It is used for rolling hot rolled strip at normal temperature and finally rolled into strip with ideal thickness

after several passes.The cold rolling mill is a four-roller reversible cold rolling mill, which adopts hydraulic

pressure down and automatic control system with thickness.The machine is driven by working roller.The

working roller is equipped with hydraulic bending roll device.

Cold rolling mill compared with single rack high production efficiency, high degree of automation, good

quality , suitable for high -volume production . Based on product characteristics and customer requirements,

our company can provide two racks , three racks , four racks , five-stand tandem cold mill , etc.using a

hydraulic pressure AGC, automatic thickness measurement . Endless rolling , automatic welding

technology.

We can design and select model according to customer material, specification and requirement
