Product Details:
Payment & Shipping Terms:
|
| Technology: | PVD Lens Coating | Substrate: | Glass Lens,acrylic,crystal Ornaments,etc. |
|---|---|---|---|
| Coating Film: | Reflective Film,protection Film,etc | Coating Color: | Gold, Rose Gold, Silver,rainbow Etc. |
| After Sale Service: | Engineers Avaliable To Service Machinery Oversea | Limited Vacuum Degree: | 8*10-4Pa |
ATOP Resin Ophthalmic Lens PVD Vacuum Optical Coating Equipment
Electron beam evaporation is that the membrane is put into the water-cooled copper crucible, heated by
direct use of electron beam, the vaporized atoms or molecules of membrane material is condensed to a
mould by incidence to the surface of the substrate after escaping from the surface evaporation. Electron
beam evaporation has high thermal efficiency, beam density, evaporation speed, high purity of film made
than the resistance heating evaporation.

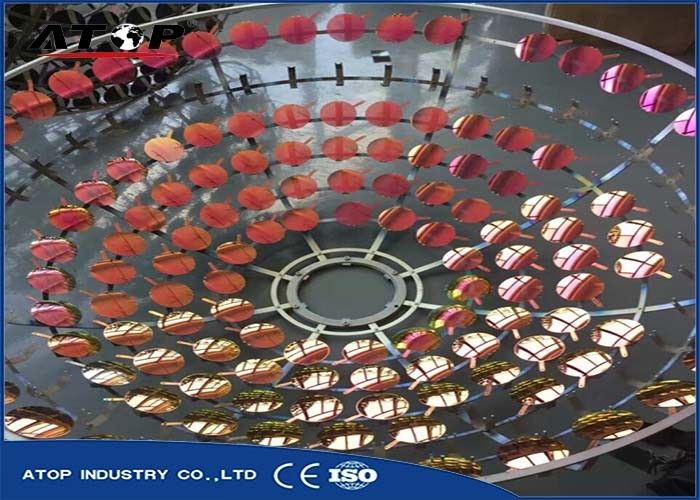

The machine is consist of vacuum chamber, Work piece carrier,vacuum pumping system, bias power
supply, coating system, gas system, heating system,working system,control system,alarm system and
electron gun,evaporation source.
The machine is controlled by industry touch screen and PLC and can be manual controlled, half auto
controlled or auto controlled. Vacuum pumping, coating and gas inflating is controlled by main controlling
box. The machine will alarm by sound and flashing light when the cooling water and electric power supply
is cut off or the cooling water current is not enough for system cooling. All pumps and valves have inter-
locked function to avoid wrong operation for machine safety.
Mainly used for glass lens,acrylic,crystal ornaments,plastic panels,resin material.This equipment can coat
diamond with colorful decoration film,reflective film,coating,uv protection film,reflective film,filter
membrane,beam splitters,dielectric film and so on
Very large scale film and multi-layer film can be realized.The machine can meet the requirement of
reflective glass,binoculars,glass lens,optical lens,light cup,the silver film,AF film products of phone screen.
|
|
|
|
|
Decide according to the substrate size and output |
| Substrate |
|
| Coating Film |
|
| Coating Material |
|
|
|
Glass lens, acrylic, crystal ornaments, plastic panels, resin material. |
1.The traditional vertical or efficient horizontal,equipped with large crucible gun,the film surface is smooth
and uniformity;
2.Equipped with high-power ion source,improve the coating quality and efficiency;
3.Equipped quartz crystal film thickness control device,can realize the film forming rate and automatic
process control;
4.The design of structure can meet the demands of vacuum technology,vacuum system adopt free-oil
system to ensure the whole system work under no oil condition,ensure film clean;
5.The vacuum interlock protection of operating system,vacuum pump with water,power outage alarm
function;
6.Touch screen and PLC control,realize the parametric settings,real-time monitoring and intelligent fault
diagnosis.
