Electron Beam Optical Lens Coating Machine For Anti Reflective Binoculars

China Electron Beam Optical Lens Coating Machine For Anti Reflective Binoculars supplier
Electron Beam Optical Lens Coating Machine For Anti Reflective Binoculars supplier Electron Beam Optical Lens Coating Machine For Anti Reflective Binoculars supplier

Large Image :  Electron Beam Optical Lens Coating Machine For Anti Reflective Binoculars

Product Details:

Place of Origin: China
Brand Name: ATOP
Certification: ISO9001
Model Number: ATSF

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: By negotiation
Packaging Details: In film
Delivery Time: 60working days
Payment Terms: L/C, T/T
Supply Ability: 200 sets/year
Contact Now
Detailed Product Description
Coating Color: Gold, Rose Gold, Silver,rainbow Etc. Condition: New
Place Of Origin: Jiangsu, China (Mainland) Certification: ISO,CE
Customization: Yes Limited Vacuum Degree: 8*10-4Pa





ATOP Binoculars Lens Electron Beam Vacuum Optical Coating Machine







Main Feature





1.Equipped quartz crystal film thickness control device,can realize the film forming rate and automatic



process control;




2.The design of structure can meet the demands of vacuum technology,vacuum system adopt free-oil



system to ensure the whole system work under no oil condition,ensure film clean;




3.The vacuum interlock protection of operating system,vacuum pump with water,power outage alarm



function;




4.Touch screen and PLC control,realize the parametric settings,real-time monitoring and intelligent fault



diagnosis.





5.The traditional vertical or efficient horizontal,equipped with large crucible gun,the film surface is smooth



and uniformity;








Operational principle




Electron beam evaporation is that the membrane is put into the water-cooled copper crucible, heated by



direct use of electron beam, the vaporized atoms or molecules of membrane material is condensed to a



mould by incidence to the surface of the substrate after escaping from the surface evaporation. Electron



beam evaporation has high thermal efficiency, beam density, evaporation speed, high purity of film made



than the resistance heating evaporation.







Product Name





ATOP Binoculars Lens Electron Beam Vacuum Optical Coating Machine





Vacuum Chamber Size



Decide according to the substrate size and output
Substrate



Glass,plastic,etc



Coating Film



Can coat diamond with colorful decoration film, reflective film, coating, uv



protection film, reflective film, filter membrane, beam splitters, dielectric film and so



on. Very large scale film and multi-layer film can be realized.



Coating Material



The machine can meet the requirement of reflective glass, binoculars, glass lens,



optical lens, light cup, the silver film, AF film products of phone screen





Applications



Glass lens, acrylic, crystal ornaments, plastic panels, resin material.





Application Field





Mainly used for glass lens,acrylic,crystal ornaments,plastic panels,resin material.This equipment can coat



diamond with colorful decoration film,reflective film,coating,uv protection film,reflective film,filter



membrane,beam splitters,dielectric film and so on



Very large scale film and multi-layer film can be realized.The machine can meet the requirement of



reflective glass,binoculars,glass lens,optical lens,light cup,the silver film,AF film products of phone screen.

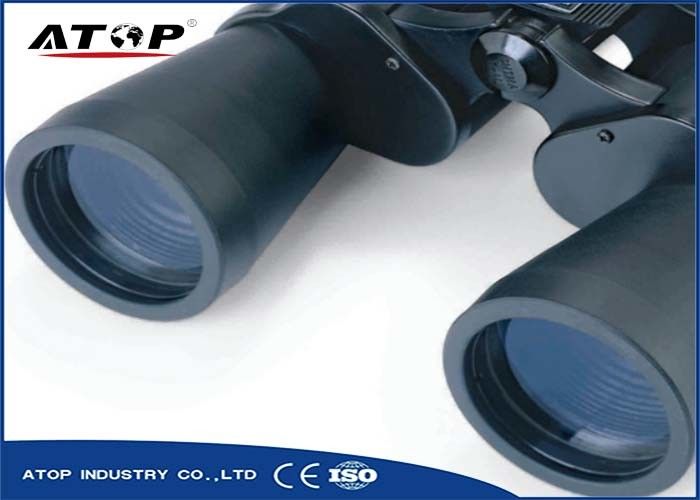

Coating Samples





Electron Beam Optical Lens Coating Machine For Anti Reflective Binoculars
