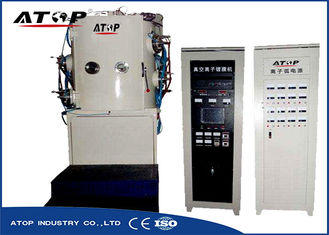

ATOP Single Door E-beam Evaporation Optical PVD Vacuum Coating Machine









Basic Configuration




1. The coating room: vertical single door, or horizontal structure selection, full stainless steel material,



vacuum chamber of the effective diameter 800 mm to 2000 mm, double walled water cooling structure,



with plug-in in antifouling stainless steel plate, easy to clean and operation, etc.;





2. Workpiece frame: generic integral or umbrella structure, or customized according to customer



requirements, adjustable with frequency converter, adjustable speed;





3. The vacuum system: mechanical pump, rotary vane pump, roots pump, molecular pump, cryogenic



pump, with cold trap of high vacuum oil diffusion pump large pumping speed extraction system, the



backing pump optional oil-free vacuum pump, stainless steel pipes and valves;





4. The coating system: the 1 set - six sets of high-power magnetic deflection 270 ° e electron gun and



multiple point crucible, assisted deposition system configuration hall ion source and resistance of



evaporation source;





5. Inflating system: automatic gas flowmeter and flow display instrument control;





6. Control system: color touch screen, PLC, automatic and manual control can be converted at any time.





Real-time display detailed parameters, fully automatic control of the entire production process, automatic



storage process parameters.





The main electrical components are famous brands such as schneider.





7. Safety system: setting up the acoustic optical alarm device of water, electricity and gas anomaly, and



implementing the corresponding protection procedure;





8. Heating and baking system: adopt a stainless steel tube heating body, the substrate temperature can



reach 350 degrees, the temperature control meter adopts the Japanese conductive instrument, the



temperature control precision is plus or minus 1 degree Celsius;





9. Film thickness control: quartz crystal film thickness monitoring system, which can control the



evaporation rate of the electron gun, accurately control the film thickness, and automatically switch easily



and automatically.





10. Electron gun and the evaporation source: electron gun power source adopts the power frequency



voltage rise, digital control circuits, sparking with high-pressure automatic protection, restoration and



steady beam function, remote control, can commune with quartz crystal thickness meter, coating process



automatic control





Machine Introduction



The machine is controlled by industry touch screen and PLC and can be manual controlled, half auto

controlled or auto controlled. Vacuum pumping, coating and gas inflating is controlled by main controlling

box. The machine will alarm by sound and flashing light when the cooling water and electric power supply

is cut off or the cooling water current is not enough for system cooling. All pumps and valves have inter-

locked function to avoid wrong operation for machine safety.



Operational principle



Electron beam evaporation is that the membrane is put into the water-cooled copper crucible, heated by

direct use of electron beam, the vaporized atoms or molecules of membrane material is condensed to a

mould by incidence to the surface of the substrate after escaping from the surface evaporation. Electron

beam evaporation has high thermal efficiency, beam density, evaporation speed, high purity of film made

than the resistance heating evaporation.






Main Feature





Product Name



ATOP Single Door E-beam Evaporation Optical PVD Vacuum Coating Machine



Vacuum Chamber Size


Decide according to the substrate size and output
Substrate


Glass,plastic,etc


Coating Film


Can coat diamond with colorful decoration film, reflective film, coating, uv

protection film, reflective film, filter membrane, beam splitters, dielectric film and so

on. Very large scale film and multi-layer film can be realized.


Coating Material


The machine can meet the requirement of reflective glass, binoculars, glass lens,

optical lens, light cup, the silver film, AF film products of phone screen



Applications


Glass lens, acrylic, crystal ornaments, plastic panels, resin material.



1.The traditional vertical or efficient horizontal,equipped with large crucible gun,the film surface is smooth

and uniformity;

2.Equipped with high-power ion source,improve the coating quality and efficiency;

3.Equipped quartz crystal film thickness control device,can realize the film forming rate and automatic

process control;

4.The design of structure can meet the demands of vacuum technology,vacuum system adopt free-oil

system to ensure the whole system work under no oil condition,ensure film clean;

5.The vacuum interlock protection of operating system,vacuum pump with water,power outage alarm

function;

6.Touch screen and PLC control,realize the parametric settings,real-time monitoring and intelligent fault

diagnosis.

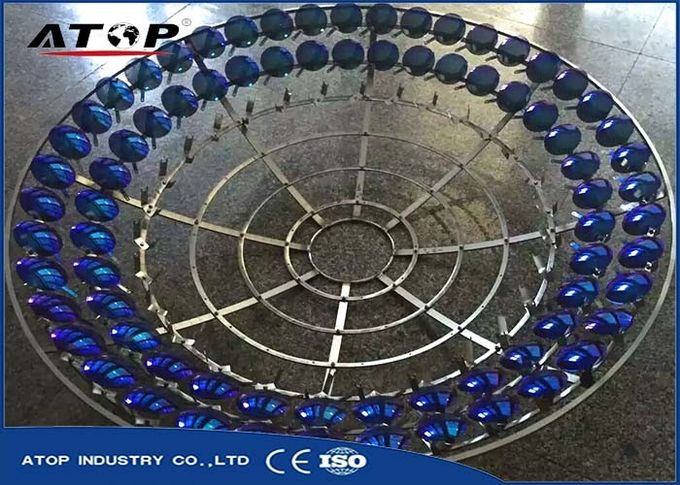

Coating Samples
