Product Details:

Place of Origin: China
Brand Name: ATOP
Certification: ISO9001
Model Number: ATSF

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: By negotiation
Packaging Details: In film
Delivery Time: 60working days
Payment Terms: L/C, T/T
Supply Ability: 200 sets/year
Contact Now
Detailed Product Description
Operating System: PLC Touching Screen Chamber Material: SUS304
Business Type: Manufacturer Warranty: 12 Months
After Sale Service: Engineers Avaliable To Service Machinery Oversea Limited Vacuum Degree: 8*10-4Pa





ATOP Silver Film Evaporation Optical PVD Vacuum Coating Machine For Mirror







Application Field





Mainly used for glass lens,acrylic,crystal ornaments,plastic panels,resin material.This equipment can coat



diamond with colorful decoration film,reflective film,coating,uv protection film,reflective film,filter



membrane,beam splitters,dielectric film and so on



Very large scale film and multi-layer film can be realized.The machine can meet the requirement of



reflective glass,binoculars,glass lens,optical lens,light cup,the silver film,AF film products of phone screen.







Operational principle




Electron beam evaporation is that the membrane is put into the water-cooled copper crucible, heated by



direct use of electron beam, the vaporized atoms or molecules of membrane material is condensed to a



mould by incidence to the surface of the substrate after escaping from the surface evaporation. Electron



beam evaporation has high thermal efficiency, beam density, evaporation speed, high purity of film made



than the resistance heating evaporation.







Basic Configuration





1. Workpiece frame: generic integral or umbrella structure, or customized according to customer



requirements, adjustable with frequency converter, adjustable speed.





2. The vacuum system: mechanical pump, rotary vane pump, roots pump, molecular pump, cryogenic



pump, with cold trap of high vacuum oil diffusion pump large pumping speed extraction system, the



backing pump optional oil-free vacuum pump, stainless steel pipes and valves.





3. The coating system: the 1 set - six sets of high-power magnetic deflection 270 ° e electron gun and



multiple point crucible, assisted deposition system configuration hall ion source and resistance of



evaporation source.





4. Inflating system: automatic gas flowmeter and flow display instrument control.





5. Control system: color touch screen, PLC, automatic and manual control can be converted at any



time.Real-time display detailed parameters, fully automatic control of the entire production process,



automatic storage process parameters.The main electrical components are famous brands such as



schneider.





6. Safety system: setting up the acoustic optical alarm device of water, electricity and gas anomaly, and



implementing the corresponding protection procedure.





7. Heating and baking system: adopt a stainless steel tube heating body, the substrate temperature can



reach 350 degrees, the temperature control meter adopts the Japanese conductive instrument, the



temperature control precision is plus or minus 1 degree Celsius.





8. Electron gun and the evaporation source: electron gun power source adopts the power frequency



voltage rise, digital control circuits, sparking with high-pressure automatic protection, restoration and



steady beam function, remote control, can commune with quartz crystal thickness meter, coating process



automatic control.









Product Name





ATOP Silver Film Evaporation Optical PVD Vacuum Coating Machine For Mirror





Vacuum Chamber Size



Decide according to the substrate size and output
Substrate



Glass,plastic,etc



Coating Film



Can coat diamond with colorful decoration film, reflective film, coating, uv



protection film, reflective film, filter membrane, beam splitters, dielectric film and so



on. Very large scale film and multi-layer film can be realized.



Coating Material



The machine can meet the requirement of reflective glass, binoculars, glass lens,



optical lens, light cup, the silver film, AF film products of phone screen





Applications



Glass lens, acrylic, crystal ornaments, plastic panels, resin material.

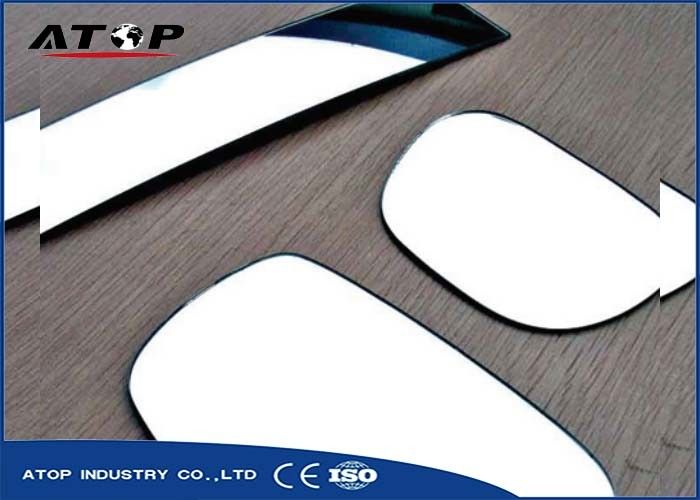

Coating Samples





Scratch Resistant Mirror Coating Machine Full Automatic For Silver Film Mirror
