Integrated Fingerprint Proof Lens Coating Machine , Anti UV Glass Coating Machine

China Integrated Fingerprint Proof Lens Coating Machine , Anti UV Glass Coating Machine  supplier
Integrated Fingerprint Proof Lens Coating Machine , Anti UV Glass Coating Machine  supplier Integrated Fingerprint Proof Lens Coating Machine , Anti UV Glass Coating Machine  supplier

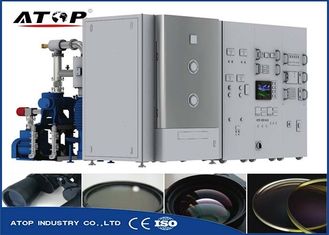

Large Image :  Integrated Fingerprint Proof Lens Coating Machine , Anti UV Glass Coating Machine

Product Details:

Place of Origin: China
Brand Name: ATOP
Certification: ISO9001
Model Number: ATZSF

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: By negotiation
Packaging Details: In film
Delivery Time: 60working days
Payment Terms: L/C, T/T
Supply Ability: 200 sets/year
Contact Now
Detailed Product Description
Substrate: Glass Lens,acrylic,crystal Ornaments,etc. Product Name: Vacuum Coating Machine
Coating Film: Reflective Film,protection Film,etc Chamber Material: SUS304
Control System: Manual Automatic All-in-One Technology: PVD Lens Coating





ATOP Reflective Film/Anti-Finger Print Film/Anti-Scratch Film Vacuum Coating Machine





Basic configuration



1. The coating room: vertical single door, or horizontal structure selection, full stainless steel material,



vacuum chamber of the effective diameter 800 mm to 2000 mm, double walled water cooling structure,



with plug-in in antifouling stainless steel plate, easy to clean and operation, etc.;





2. Workpiece frame: generic integral or umbrella structure, or customized according to customer



requirements, adjustable with frequency converter, adjustable speed;





3. The vacuum system: mechanical pump, rotary vane pump, roots pump, molecular pump, cryogenic



pump, with cold trap of high vacuum oil diffusion pump large pumping speed extraction system, the



backing pump optional oil-free vacuum pump, stainless steel pipes and valves;





4. The coating system: the 1 set - six sets of high-power magnetic deflection 270 ° e electron gun and



multiple point crucible, assisted deposition system configuration hall ion source and resistance of



evaporation source;





5. Inflating system: automatic gas flowmeter and flow display instrument control;





Operational principle




Electron beam evaporation is that the membrane is put into the water-cooled copper crucible, heated by



direct use of electron beam, the vaporized atoms or molecules of membrane material is condensed to a



mould by incidence to the surface of the substrate after escaping from the surface evaporation. Electron



beam evaporation has high thermal efficiency, beam density, evaporation speed, high purity of film made



than the resistance heating evaporation.







Application Field





Mainly used for glass lens,acrylic,crystal ornaments,plastic panels,resin material.This equipment can coat



diamond with colorful decoration film,reflective film,coating,uv protection film,reflective film,filter



membrane,beam splitters,dielectric film and so on



Very large scale film and multi-layer film can be realized.The machine can meet the requirement of



reflective glass,binoculars,glass lens,optical lens,light cup,the silver film,AF film products of phone screen.






Main Feature







Product Name





ATOP Reflective Film/Anti-Finger Print Film/Anti-Scratch Film Vacuum Coating



Machine





Vacuum Chamber Size



Decide according to the substrate size and output
Substrate



Glass



Coating Film



Can coat diamond with colorful decoration film, reflective film, coating, uv



protection film, reflective film, filter membrane, beam splitters, dielectric film and so



on. Very large scale film and multi-layer film can be realized.



Coating Material



The machine can meet the requirement of reflective glass, binoculars, glass lens,



optical lens, light cup, the silver film, AF film products of phone screen





Applications



Glass lens, acrylic, crystal ornaments, plastic panels, resin material.





1.The traditional vertical or efficient horizontal,equipped with large crucible gun,the film surface is smooth



and uniformity;




2.Equipped with high-power ion source,improve the coating quality and efficiency;




3.Equipped quartz crystal film thickness control device,can realize the film forming rate and automatic



process control;




4.The design of structure can meet the demands of vacuum technology,vacuum system adopt free-oil



system to ensure the whole system work under no oil condition,ensure film clean;




5.The vacuum interlock protection of operating system,vacuum pump with water,power outage alarm



function;




6.Touch screen and PLC control,realize the parametric settings,real-time monitoring and intelligent fault



diagnosis.

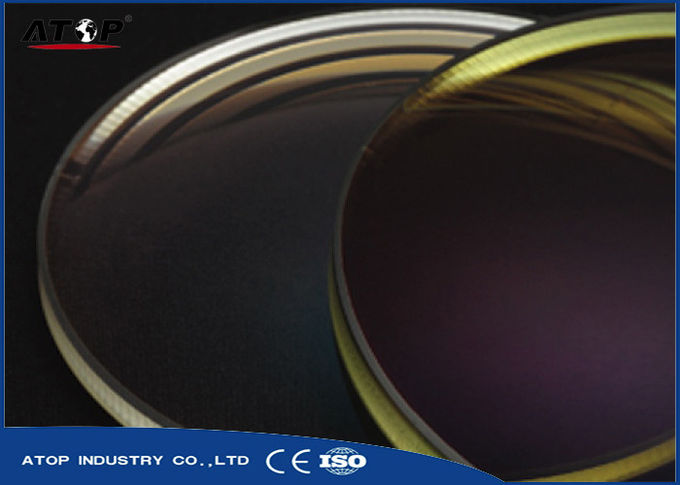

Coating Samples





Integrated Fingerprint Proof Lens Coating Machine , Anti UV Glass Coating Machine
