Necklace Jewellery Sputter Coating Machine , High Precision Gold Plating Machine

China Necklace Jewellery Sputter Coating Machine , High Precision Gold Plating Machine supplier
Necklace Jewellery Sputter Coating Machine , High Precision Gold Plating Machine supplier Necklace Jewellery Sputter Coating Machine , High Precision Gold Plating Machine supplier

Large Image :  Necklace Jewellery Sputter Coating Machine , High Precision Gold Plating Machine

Product Details:

Place of Origin: China
Brand Name: ATOP
Certification: ISO9001
Model Number: ATZK

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: By negotiation
Packaging Details: In film
Delivery Time: 60working days
Payment Terms: L/C, T/T
Supply Ability: 200 sets/year
Contact Now
Detailed Product Description
Product Name: Vacuum Coating Machine Substrate: Metal, Ceramic, Glass Etc.
Business Type: Manufacturer Coating Color: Gold, Rose Gold, Silver Etc.
Chamber Material: SUS304 Place Of Origin: Jiangsu, China (Mainland)

ATOP Necklace Jewellery Mutli-arc Ion Magnetron Sputtering Coatng Plating Machine





Basic configuration





1.the coating chamber, valves and piping are made of stainless steel vacuum chamber effective diameter



from Φ500 mm to Φ2000 mm;





2. The vacuum system consists of mechanical pump, rotary vane pump, rotz pump and a cold well high



vacuum oil diffusion pump or molecular pump;





3. The coating system adopts multiple flat target or cylindrical target, with multiple dc power or medium



frequency power supply.





4. The auxiliary pumping system adopts a low-temperature water vapor trap;





5. The gas flow meter and flow control (display) control of the pneumatic system are adopted.





6. The electric control system shall set up circuit overload, water breaking and sound alarm device of the



broken air;





7. Control system (touch screen + PLC), display detailed parameters in real time, fully automatic control of



the entire production process, and automatic storage of process parameters.





8. The equipment is equipped with high power bias system and the ionizing source auxiliary deposition



coating;





Application Field



It applies to hardware,glass crafts,ceramic crafts,such us watches,mobile phone metal shell,sanitary

ware,mould,electronic products,crystal glass, glasses, cutlery, knives and so on.

You can make super-hard wear-resistant film coating, anti-corrosion film, decorative film(gold color,rose

gold,coffee,brown,bronze,blue,black,white,gray and other colors),it combined with magnetron sputtering

technique can be plated the multilayer composite membrane and manufactured plated stainless steel,

aluminum, titanium, tungsten and other metal films may be manufactured as coated TIN, TIC, TICN, TIALN,

CRN, CU, AU, diamond film (DLC), decorative film metal, film and non-metallic composite coating film and

its compounds film.





Main Feature



1. It equipments cryogenic ion secondary source, some substrate without heating the material, It can

directly do the cold plating film at room temperature, save energy, increase productivity.


2. The maximum of the temperature for tool coating chamber can 600 degrees, In addition to the tool

Coater coating applications require heating device, other applications do not need the device.


3. High deposition rate, High coating speed, It can be widely used to do the decorative coating, functional

coating on a variety of products. So it is a ideal equipment to do the high-grade and best coating for mass

production.


4. Magnetron sputtering principle is based on the theory of the cathode glow discharge, it expend the

cathode surface magnetic field near the work piece surface. Then it improves the sputtered atom

ionization rate. It keeps the magnetron sputtering uniformity, also can improve the surface shining effect.


5. The arc plasma evaporation source is reliable, it can work under 40A current in optimizing the cathode

and the magnetic field structure,. It will happen atomic diffusion between the coating and the material. It

also has the advantages that lon Beam Assisted Deposition.


6. Vacuum pumping system, electric control system and complete vacuum coating system can be

customized according to user requirements.




Product Name



ATOP Necklace Jewellery Mutli-arc Ion Magnetron Sputtering Coatng Plating

Machine



Vacuum Chamber Size


Decide according to the substrate size and output

Substrate


Hardware,glass crafts,ceramic crafts,such us watches,mobile phone metal

shell,sanitary ware,mould,electronic products,crystal glass, glasses, cutlery,

knives and so on



Coating Film


High-grade decorative coating.

Coating Color


Gold,rose gold,coffee,brown,bronze,blue,black,white,gray etc.




Applications


Hardware,glass crafts,ceramic crafts .


Structure


Vertical type ; horizontal type ; single door type ; double-door type.


Coating Material


Stainless steel, aluminum, titanium, tungsten and other metal films may


be manufactured as coated TIN, TIC, TICN, TIALN, CRN, CU, AU, diamond film

(DLC), decorative film metal, film and non-metallic composite coating film and its

compounds film.


Features


High pumping speed, high efficiency, energy saving, full automatic process

controller can be simple, reliable, beautiful.

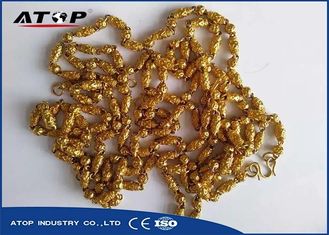

Coating Samples


Necklace Jewellery Sputter Coating Machine , High Precision Gold Plating Machine
