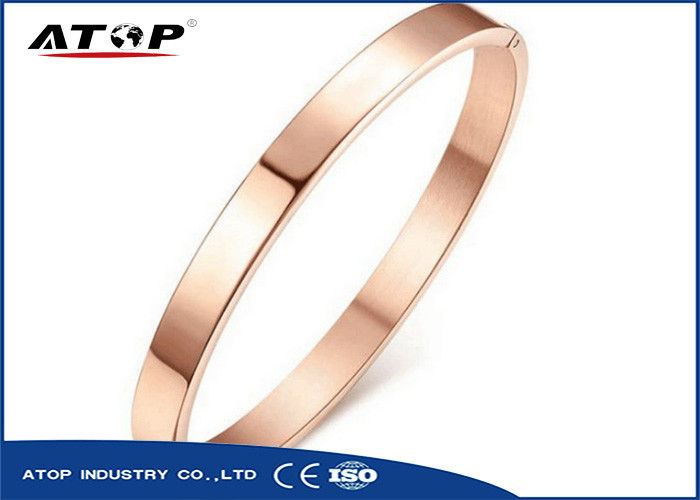

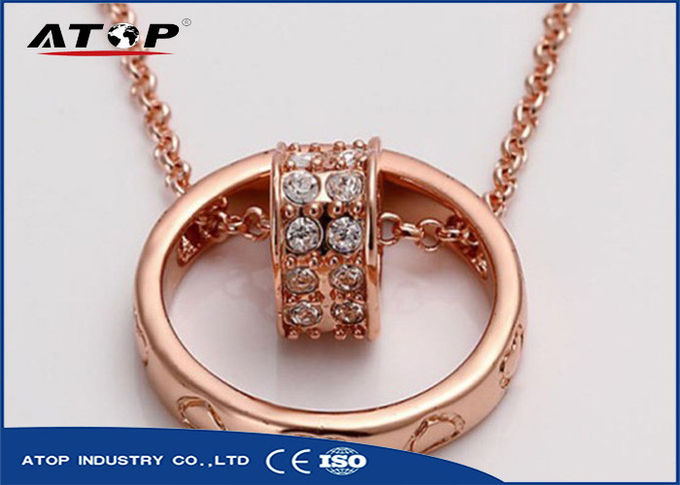

ATOP Jewellery Rose Gold Multi-arc Vacuum Magnetron Sputtering Coating Machine


Vacuum magnetron sputtering coating machine working principle:the so-called "splash", the electrons in

an electric field under the action of accelerating the process of flying to the substrate with argon atom

collision, ionization out large amounts of argon ions and electrons.The electron flies toward the substrate,

the argon ion speeds up the target material under the action of the electric field, sputtering out a large

number of target atom, and the neutral target atom (or molecule) is deposited on the substrate to form the

film.Secondary electron in accelerating to fly to the substrate by magnetic field in the process of lorentz

magnetic force, the influence of confined area near the target surface plasma, the plasma density in the

area is very high, secondary electron under the action of magnetic field around the target surface is

circular motion, the electron motion path is very long, constantly in the process of movement of the impact

ionization out large amounts of argon ion bombardment of target, after many times of collision of the

electron energy gradually reduce, cast off the yoke of the magnetic field lines, away from the target

material, the final deposition on the substrate.



1.The Vacuum coating chamber, valves and piping are made of stainless steel vacuum chamber effective

diameter from Φ500 mm to Φ2000 mm.


2. The vacuum system consists of mechanical pump, rotary vane pump, roots pump and a cold well high

vacuum oil diffusion pump or molecular pump;


3. The coating system adopts multiple flat target or cylindrical target, with multiple dc power or medium

frequency power supply.


4. The auxiliary pumping system adopts a low-temperature water vapor trap;


5. The gas flow meter and flow control (display) control of the pneumatic system are adopted.


6. The electric control system shall set up circuit overload, water breaking and sound alarm device of the

broken air;


7. Control system (touch screen + PLC), display detailed parameters in real time, fully automatic control of

the entire production process, and automatic storage of process parameters.


8. The equipment is equipped with high power bias system and the ionizing source auxiliary deposition

coating;




1. The high energy emitted by sputtering has significantly enhanced the membrane density and adhesion.


2. The workpiece frame adopts the public rotation structure, which can set the automatic positive and

backward rotation, and the product is even good.


3. Reasonable configuration, quick pumping rate, low noise, low energy consumption.


4. The film layer deposited by this equipment can meet customer requirements in terms of density,

uniformity, purity and hardness.


5. The touch screen +PLC can achieve full automatic control, automatic/manual switching.
