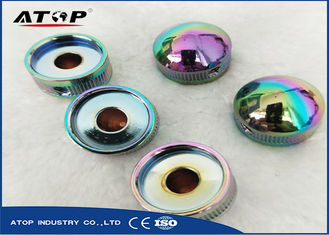

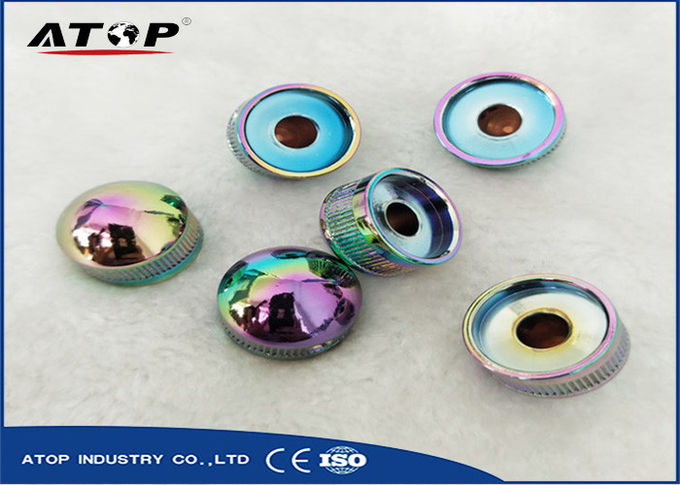

ATOP Brass Rainbow Color Vacuum Magnetron Sputtering Coating Machine


1. It equipments cryogenic ion secondary source, some substrate without heating the material, It can

directly do the cold plating film at room temperature, save energy, increase productivity.


2. The maximum of the temperature for tool coating chamber can 600 degrees, In addition to the tool

Coater coating applications require heating device, other applications do not need the device.



3. High deposition rate, High coating speed, It can be widely used to do the decorative coating, functional

coating on a variety of products. So it is a ideal equipment to do the high-grade and best coating for mass

production.


4. Magnetron sputtering principle is based on the theory of the cathode glow discharge, it expend the

cathode surface magnetic field near the work piece surface. Then it improves the sputtered atom

ionization rate. It keeps the magnetron sputtering uniformity, also can improve the surface shining effect.


5. The arc plasma evaporation source is reliable, it can work under 40A current in optimizing the cathode

and the magnetic field structure,. It will happen atomic diffusion between the coating and the material. It

also has the advantages that lon Beam Assisted Deposition.


6. Vacuum pumping system, electric control system and complete vacuum coating system can be

customized according to user requirements.





It applies to hardware,glass crafts,ceramic crafts,such us watches,mobile phone metal shell,sanitary

ware,mould,electronic products,crystal glass, glasses, cutlery, knives and so on. You can make super-

hard wear-resistant film coating, anti-corrosion film, decorative film(gold color,rose gold,coffee,brown,

bronze,blue,black,white,gray and other colors),it combined with magnetron sputtering technique

can be plated the multilayer composite membrane and manufactured plated stainless steel,

aluminum, titanium, tungsten and other metal films may be manufactured as coated TIN, TIC, TICN, TIALN,

CRN, CU, AU, diamond film (DLC), decorative film metal, film and non-metallic composite coating film and

its compounds film.





1.The Vacuum coating chamber, valves and piping are made of stainless steel vacuum chamber effective
diameter from Φ500 mm to Φ2000 mm.

2. The vacuum system consists of mechanical pump, rotary vane pump, roots pump and a cold well high
vacuum oil diffusion pump or molecular pump;

3. The coating system adopts multiple flat target or cylindrical target, with multiple dc power or medium
frequency power supply.

4. Control system (touch screen + PLC), display detailed parameters in real time, fully automatic control of
the entire production process, and automatic storage of process parameters.

5. The equipment is equipped with high power bias system and the ionizing source auxiliary deposition
coating;
6. The auxiliary pumping system adopts a low-temperature water vapor trap;

7. The gas flow meter and flow control (display) control of the pneumatic system are adopted.

8. The electric control system shall set up circuit overload, water breaking and sound alarm device of the

broken air;
