Hand Watchcase gold Sputter Coating Machine With Touch Screen + PLC

China Hand Watchcase gold Sputter Coating Machine With Touch Screen + PLC supplier
Hand Watchcase gold Sputter Coating Machine With Touch Screen + PLC supplier Hand Watchcase gold Sputter Coating Machine With Touch Screen + PLC supplier

Large Image :  Hand Watchcase gold Sputter Coating Machine With Touch Screen + PLC

Product Details:

Place of Origin: China
Brand Name: ATOP
Certification: ISO9001
Model Number: ATZK

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: By negotiation
Packaging Details: In film
Delivery Time: 60working days
Payment Terms: L/C, T/T
Supply Ability: 200 sets/year
Contact Now
Detailed Product Description
Certification: ISO,CE Business Type: Manufacturer
Coating Color: Gold, Rose Gold, Silver Etc. Place Of Origin: Jiangsu, China (Mainland)
Chamber Material: SUS304

ATOP Hand Watchcase Vacuum Magnetron Sputtering Coating Machine With Gold Color









Basic configuration


1.The Vacuum coating chamber, valves and piping are made of stainless steel vacuum chamber effective

diameter from Φ500 mm to Φ2000 mm.


2. The vacuum system consists of mechanical pump, rotary vane pump, roots pump and a cold well high

vacuum oil diffusion pump or molecular pump;


3. The coating system adopts multiple flat target or cylindrical target, with multiple dc power or medium

frequency power supply.


4. The auxiliary pumping system adopts a low-temperature water vapor trap;


5. The gas flow meter and flow control (display) control of the pneumatic system are adopted.


6. The electric control system shall set up circuit overload, water breaking and sound alarm device of the

broken air;


7. Control system (touch screen + PLC), display detailed parameters in real time, fully automatic control of

the entire production process, and automatic storage of process parameters.


8. The equipment is equipped with high power bias system and the ionizing source auxiliary deposition

coating;



Main Feature



1. The high energy emitted by sputtering has significantly enhanced the membrane density and adhesion.


2. The workpiece frame adopts the public rotation structure, which can set the automatic positive and

backward rotation, and the product is even good.


3. Reasonable configuration, quick pumping rate, low noise, low energy consumption.


4. The film layer deposited by this equipment can meet customer requirements in terms of density,

uniformity, purity and hardness.


5. The touch screen +PLC can achieve full automatic control, automatic/manual switching.





Product Name


Hand Watchcase Vacuum Magnetron Sputtering Coating Machine With Gold Color


Vacuum Chamber Size


Decide according to the substrate size and output

Substrate


Hardware,glass crafts,ceramic crafts,such us watches,mobile phone metal

shell,sanitary ware,mould,electronic products,crystal glass, glasses, cutlery,

knives and so on



Coating Film


High-grade decorative coating.

Coating Color


Gold,rose gold,coffee,brown,bronze,blue,black,white,gray etc.




Applications


Hardware,glass crafts,ceramic crafts .


Structure


Vertical type ; horizontal type ; single door type ; double-door type.


Coating Material


Stainless steel, aluminum, titanium, tungsten and other metal films may


be manufactured as coated TIN, TIC, TICN, TIALN, CRN, CU, AU, diamond film

(DLC), decorative film metal, film and non-metallic composite coating film and its

compounds film.


Features


High pumping speed, high efficiency, energy saving, full automatic process

controller can be simple, reliable, beautiful.

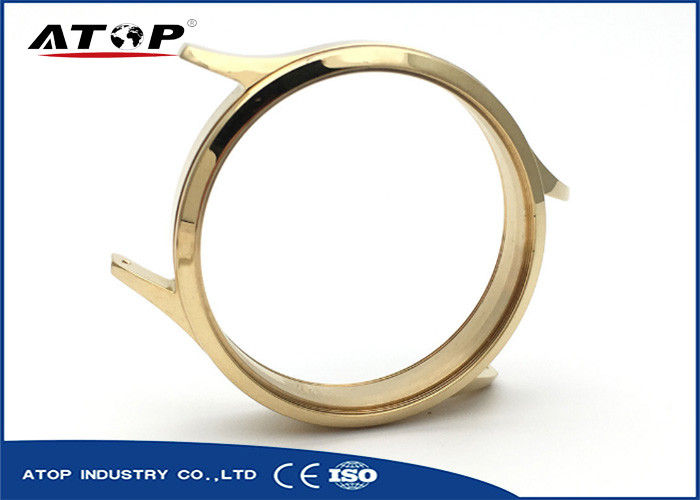

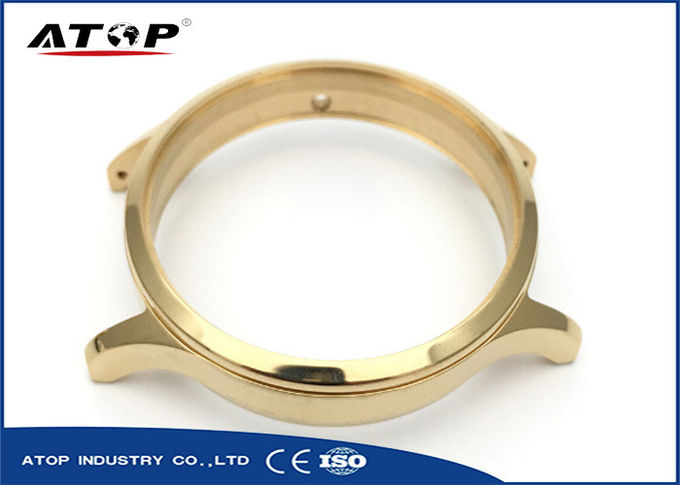

Coating Samples


Hand Watchcase gold Sputter Coating Machine With Touch Screen + PLC
