PLC Control Indium TinOxide Roll Coating Equipment With Large Loading Capacity

China PLC Control Indium TinOxide Roll Coating Equipment With Large Loading Capacity supplier
PLC Control Indium TinOxide Roll Coating Equipment With Large Loading Capacity supplier PLC Control Indium TinOxide Roll Coating Equipment With Large Loading Capacity supplier

Large Image :  PLC Control Indium TinOxide Roll Coating Equipment With Large Loading Capacity

Product Details:

Place of Origin: China
Brand Name: ATOP
Certification: ISO9001
Model Number: ATJR

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: By negotiation
Packaging Details: In film
Delivery Time: 60working days
Payment Terms: L/C, T/T
Supply Ability: 200 sets/year
Contact Now
Detailed Product Description
Chamber Material: SUS304 Control System: Manual Automatic All-in-One
Place Of Origin: Jiangsu, China (Mainland) After-sales Service Provided: Engineers Available To Service Machinery Overseas
Business Type: Manufacturer Customization: Yes

ATOP Indium TinOxide Coating/ ITO Film Rolling Vacuum Coating Machine





Main features





1. Large volume, large loading capacity and high production efficiency.





2. The workpiece frame adopts the public rotation structure, which can set the automatic positive and



backward rotation, and the product is even good.





3. Reasonable configuration, quick pumping rate, low noise, low energy consumption.





4. The film layer deposited by this equipment can meet customer requirements in terms of density,



uniformity, purity and hardness.







Application Field



Mainly suitable for liquid crystal displays, plasma displays, electroluminescent display, touch screen, solar

cells, flexible circuit boards and other conductive glass and electronic instrument high transparent

conductive films.A semiconductor membrane with high conductivity, visible transmittance, mechanical

hardness and good stability.By using different structure targets and different target materials, a layer or

layer of nano-coating is deposited on the substrate surface to form a high and low resistance ITO film.







Basic configuration


1. Control system: touch screen, PLC, automatic and manual control can be converted at any time.Real-

time display detailed parameters, fully automatic control of the entire production process, automatic

storage process parameters.The main electrical components are famous brands such as schneider.


2. Safety system: setting up the sound and light alarm device of water, electricity and gas anomaly, and

implementing corresponding protection procedures;



3. Vacuum Coating room: vertical single room, multi-room or horizontal single, multi-chamber structure

selection,304 stainless steel material, the effective diameter of the vacuum chamber is 800mm- 3500mm,

with water cooling structure, etc.


4. Vacuum system: mechanical pump, rotary vane pump, roots pump, molecular pump, low temperature

pump, high vacuum oil diffusion pump with cold well, high vacuum oil diffusion pump, adopt stainless steel

pipe and valve;


5. Coating system: 2 sets of 2-10 sets of flat target or column target, DC magnetron sputtering, DC+RF

magnetron sputtering, HDAP coating.









Product Name



ATOP Indium TinOxide Coating/ ITO Film Rolling Vacuum Coating Machine




Vacuum Chamber Size

Decide according to the substrate size and output

Substrate



Liquid crystal displays, plasma displays, electroluminescent display, touch screen,

solar cells, flexible circuit boards and other conductive glass and electronic

instrument.



Coating Film


High transparent conductive films


Coating Colors

Gold, rose gold,coffee,brown,bronze,blue,rainbow etc.
Applications


Mainly suitable for liquid crystal displays, plasma displays, electroluminescent

display, touch screen, solar cells, flexible circuit boards and other conductive glass

and electronic instrument high transparent conductive films.



Structure

Vertical type ; horizontal type ; single door type ; double-door type.
Features


The rolling system adopts high precision servo frequency conversation to control the

speed. stable operation, high coating speed, when it release and loading the

products. It will be very neat, no scratch, no drape to material.


Configuration

High pumping speed, high efficiency, energy saving, full automatic process controller

can be simple, reliable, beautiful.

Weight

3Tons-8Tons accordingly

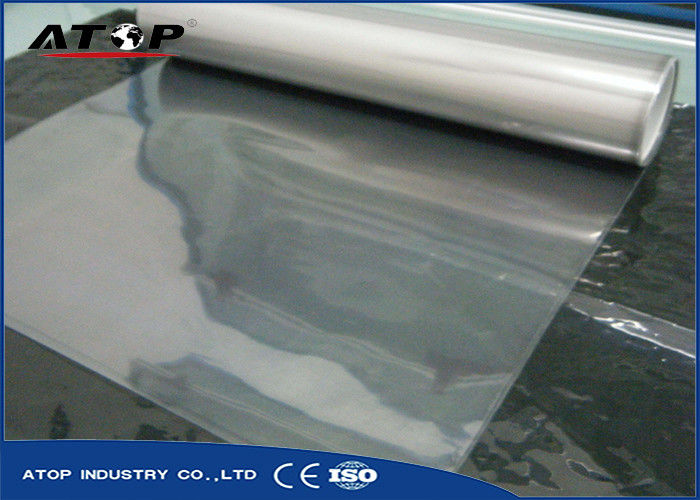

Coating Samples


PLC Control Indium TinOxide Roll Coating Equipment With Large Loading Capacity
