SiO2 Electronic Beam Evaporation Vacuum Web Roller Coating Machine 380V

China SiO2 Electronic Beam Evaporation Vacuum Web Roller Coating Machine 380V supplier
SiO2 Electronic Beam Evaporation Vacuum Web Roller Coating Machine 380V supplier SiO2 Electronic Beam Evaporation Vacuum Web Roller Coating Machine 380V supplier

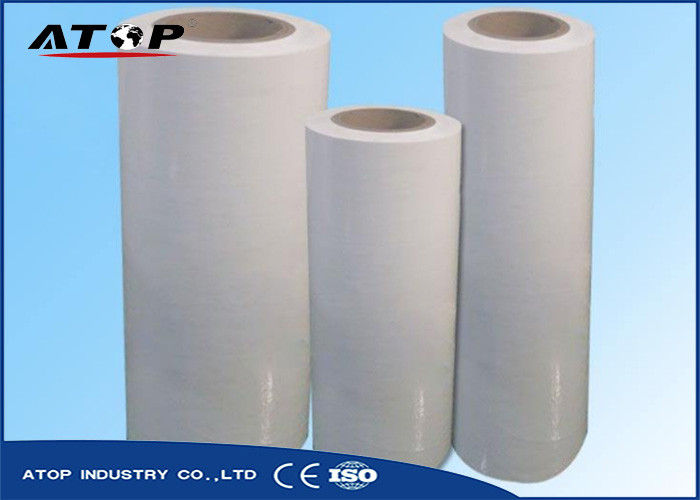

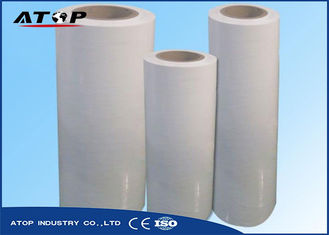

Large Image :  SiO2 Electronic Beam Evaporation Vacuum Web Roller Coating Machine 380V

Product Details:

Place of Origin: China
Brand Name: ATOP
Certification: ISO9001
Model Number: ATJR

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: By negotiation
Packaging Details: In film
Delivery Time: 60working days
Payment Terms: L/C, T/T
Supply Ability: 200 sets/year
Contact Now
Detailed Product Description
Warranty: 12 Months Customization: Yes
Voltage: 380V Control System: Manual Automatic All-in-One
Chamber Material: SUS304 Certification: ISO,CE

ATOP SiO2 Electronic Beam Evaporation Vacuum Web Rolling Coating Machine



Basic configuration

1. Vacuum system: mechanical pump, rotary vane pump, roots pump, molecular pump, low temperature

pump, high vacuum oil diffusion pump with cold well, high vacuum oil diffusion pump, adopt stainless steel

pipe and valve;


2. Coating system: 2 sets of 2-10 sets of flat target or column target, DC magnetron sputtering, DC+RF

magnetron sputtering, HDAP coating.


3. Control system: touch screen, PLC, automatic and manual control can be converted at any time.Real-

time display detailed parameters, fully automatic control of the entire production process, automatic

storage process parameters.The main electrical components are famous brands such as schneider.


4. Safety system: setting up the sound and light alarm device of water, electricity and gas anomaly, and

implementing corresponding protection procedures;



5. Vacuum Coating room: vertical single room, multi-room or horizontal single, multi-chamber structure

selection,304 stainless steel material, the effective diameter of the vacuum chamber is 800mm- 3500mm,

with water cooling structure, etc.


6. Inflating system: 1-4 gas flow meter and flow indicator control;




Application Field



Mainly suitable for liquid crystal displays, plasma displays, electroluminescent display, touch screen, solar

cells, flexible circuit boards and other conductive glass and electronic instrument high transparent

conductive films.A semiconductor membrane with high conductivity, visible transmittance, mechanical

hardness and good stability.By using different structure targets and different target materials, a layer or

layer of nano-coating is deposited on the substrate surface to form a high and low resistance ITO film.







Main features



1. Traditional horizontal or high-efficient vertical design, multi-vacuum chamber and sputtering chamber

structure, vacuum lock isolation between vacuum chamber, can be selected and meet different needs;


2. Adopt a new type of flat target, columnar target, rectangular target, twin magnetic control to target

sputtering technology, and improve the effect and efficiency of the coating.


3. Equipped with high precision magnetic control power supply, gas flow, speed control, high degree

automation, simple operation;


4. The workpiece rotating frame adopts the roller structure, which can adjust the running speed and the

product uniformity.





Product Name


SiO2 Electronic Beam Evaporation Vacuum Web Rolling Coating Machine




Vacuum Chamber Size

Decide according to the substrate size and output

Substrate



Liquid crystal displays, plasma displays, electroluminescent display, touch screen,

solar cells, flexible circuit boards and other conductive glass and electronic

instrument.



Coating Film


High transparent conductive films


Coating Colors

Gold, rose gold,coffee,brown,bronze,blue,rainbow etc.
Applications


Mainly suitable for liquid crystal displays, plasma displays, electroluminescent

display, touch screen, solar cells, flexible circuit boards and other conductive glass

and electronic instrument high transparent conductive films.



Structure

Vertical type ; horizontal type ; single door type ; double-door type.
Features


The rolling system adopts high precision servo frequency conversation to control the

speed. stable operation, high coating speed, when it release and loading the

products. It will be very neat, no scratch, no drape to material.


Configuration

High pumping speed, high efficiency, energy saving, full automatic process controller

can be simple, reliable, beautiful.

Weight

3Tons-8Tons accordingly

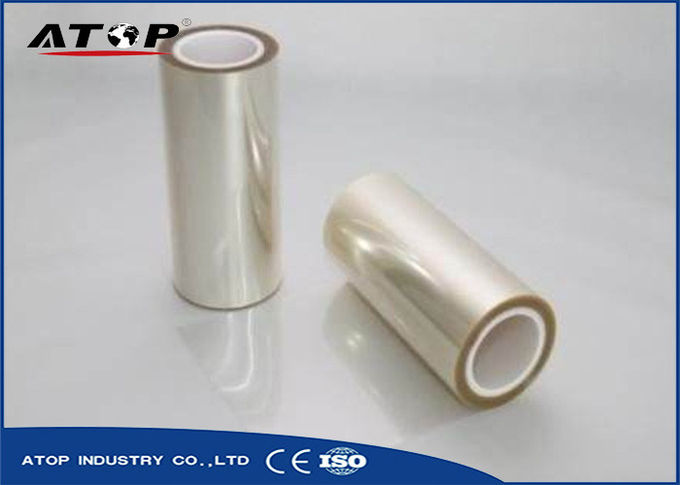

Coating Samples


SiO2 Electronic Beam Evaporation Vacuum Web Roller Coating Machine 380V
