Conductive Film Magnetron Sputtering Vacuum Web Roll To Roll Coating Machine Vertical type

China Conductive Film Magnetron Sputtering Vacuum Web Roll To Roll Coating Machine Vertical type supplier
Conductive Film Magnetron Sputtering Vacuum Web Roll To Roll Coating Machine Vertical type supplier Conductive Film Magnetron Sputtering Vacuum Web Roll To Roll Coating Machine Vertical type supplier

Large Image :  Conductive Film Magnetron Sputtering Vacuum Web Roll To Roll Coating Machine Vertical type

Product Details:

Place of Origin: China
Brand Name: ATOP
Certification: ISO9001
Model Number: ATJR

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: By negotiation
Packaging Details: In film
Delivery Time: 60working days
Payment Terms: L/C, T/T
Supply Ability: 200 sets/year
Contact Now
Detailed Product Description
Voltage: 380V Substrate: Plastic, Paper, Cloth Etc.
Operating System: PLC Touching Screen Control System: Manual Automatic All-in-One
Business Type: Manufacturer Brand Name: ATOP

ATOP Roll To Roll Conductive Film Magnetron Sputtering Vacuum Web Coating Machine



Main Feature

1. Each wire-feeding unit controlled by computer motor separately. The speed can be adjusted together

or separately with speed display.


2. Equipped with high standard vacuum pump system, with large vacuum pump speed, by PLC control.



3. The rolling system adopts high precision servo frequency conversation to control the speed. stable

operation, high coating speed, when it release and loading the products. It will be very neat, no scratch,

no drape to material.


4. The tension system uses the digital control, high tension, constant Linear velocity, the moving speed

faster.


5. Equipped with big capacity power source, high coating efficiency, good coating uniformity.


6. Stable operation, neatly release and loading, good coating uniformity, short production cycle, low

energy consumption, easy operation and maintenance, stable performance and other more advantages.





Product Category



Electronic beam heating evaporation vacuum rolling coating machine are mainly used for high-melting

material coating purpose, for example : Si02 material.

Magnetron sputtering vacuum rolling coating machine deposition rate is low, however, it have a wide

range application and high adhesion force advantages.




Resistance heating evaporation vacuum rolling machine

Induction heating evaporation vacuum rolling machine

Electronic beam heating evaporation vacuum rolling coating machine

Magnetron sputtering vacuum rolling coating machine




Application Field



Evaporation, magnetron series rolling vacuum coating machine are mainly used to do the metal film on the

surface on the plastic, cloth, paper, tinsel. These products will be widely used on package, printing, anti-

counterfeiting, textile, electronic industry and so on.




Product Name


Roll To Roll Conductive Film Magnetron Sputtering Vacuum Web Coating Machine




Vacuum Chamber Size

Decide according to the substrate size and output

Substrate

Plastic film, paper sheet, Cloth etc.

Coating Film

Decorative film,metal film,etc

Coating Colors

Gold, rose gold,coffee,brown,bronze,blue,rainbow etc.
Applications


Package, printing, anti-counterfeiting, Textile, electronic industry and so on.



Structure

Vertical type ; horizontal type ; single door type ; double-door type.
Features


The rolling system adopts high precision servo frequency conversation to control the

speed. stable operation, high coating speed, when it release and loading the

products. It will be very neat, no scratch, no drape to material.


Configuration

High pumping speed, high efficiency, energy saving, full automatic process controller

can be simple, reliable, beautiful.

Weight

3Tons-8Tons accordingly

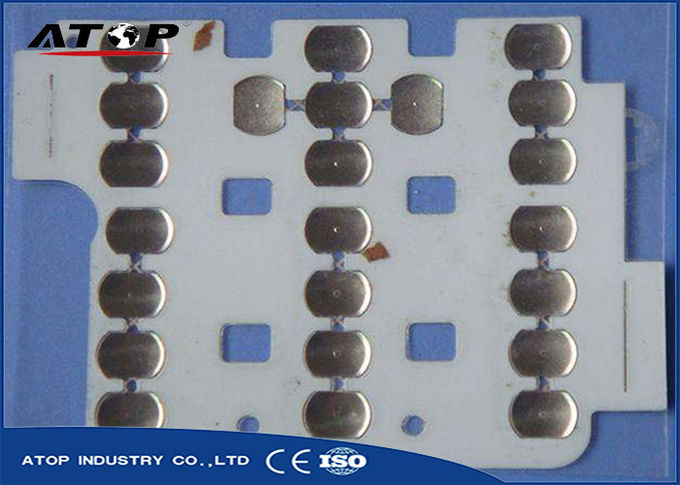

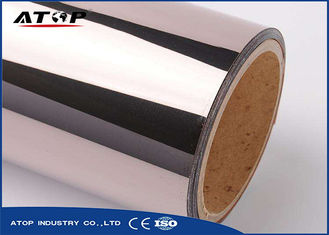

Coating Samples


Conductive Film Magnetron Sputtering Vacuum Web Roll To Roll Coating Machine Vertical type
