380V Rotation Structure Web Coating Machine For Transparent Conductive Film

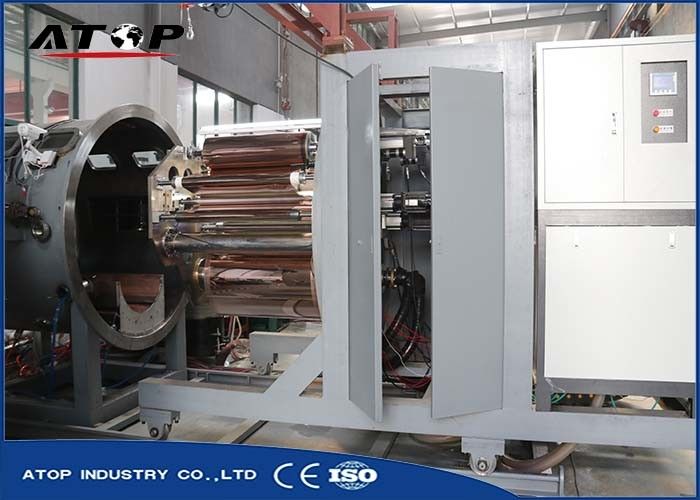

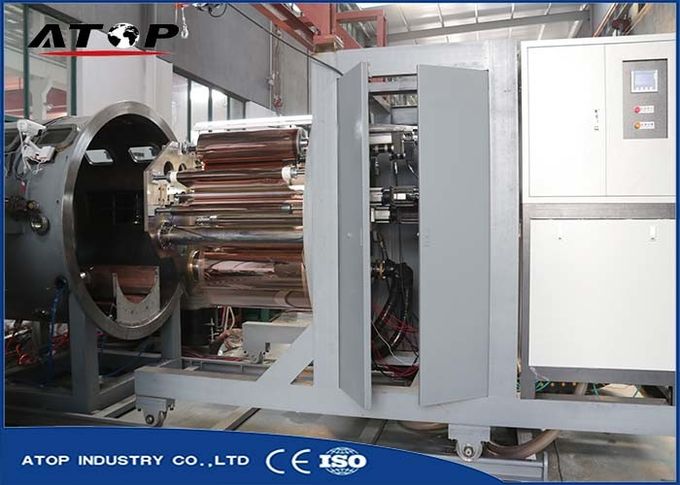

Large Image : 380V Rotation Structure Web Coating Machine For Transparent Conductive Film

Product Details:

Place of Origin:	China
Brand Name:	ATOP
Certification:	ISO9001
Model Number:	ATJR

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	By negotiation
Packaging Details:	In film
Delivery Time:	60working days
Payment Terms:	L/C, T/T
Supply Ability:	200 sets/year

Contact Now

Detailed Product Description

Voltage:	380V	Certification:	ISO,CE
Warranty:	12 Months	Control System:	Manual Automatic All-in-One
Chamber Material:	SUS304	Customization:	Yes

ATOP ITO Transparent Conductive Film Rolling Vacuum Plating Machine

Application Field

Mainly suitable for liquid crystal displays, plasma displays, electroluminescent display, touch screen, solar

cells, flexible circuit boards and other conductive glass and electronic instrument high transparent

conductive films.A semiconductor membrane with high conductivity, visible transmittance, mechanical

hardness and good stability.By using different structure targets and different target materials, a layer or

layer of nano-coating is deposited on the substrate surface to form a high and low resistance ITO film.

Basic configuration

1. Control system: touch screen, PLC, automatic and manual control can be converted at any time.Real-

time display detailed parameters, fully automatic control of the entire production process, automatic

storage process parameters.The main electrical components are famous brands such as schneider.

2. Safety system: setting up the sound and light alarm device of water, electricity and gas anomaly, and

implementing corresponding protection procedures;

3. Vacuum Coating room: vertical single room, multi-room or horizontal single, multi-chamber structure

selection,304 stainless steel material, the effective diameter of the vacuum chamber is 800mm- 3500mm,

with water cooling structure, etc.

4. Vacuum system: mechanical pump, rotary vane pump, roots pump, molecular pump, low temperature

pump, high vacuum oil diffusion pump with cold well, high vacuum oil diffusion pump, adopt stainless steel

pipe and valve;

5. Coating system: 2 sets of 2-10 sets of flat target or column target, DC magnetron sputtering, DC+RF

magnetron sputtering, HDAP coating.

6. Inflating system: 1-4 gas flow meter and flow indicator control;

Main features

1. Traditional horizontal or high-efficient vertical design, multi-vacuum chamber and sputtering chamber

structure, vacuum lock isolation between vacuum chamber, can be selected and meet different needs;

2. Adopt a new type of flat target, columnar target, rectangular target, twin magnetic control to target

sputtering technology, and improve the effect and efficiency of the coating.

3. Equipped with high precision magnetic control power supply, gas flow, speed control, high degree

automation, simple operation;

4. The workpiece rotating frame adopts the roller structure, which can adjust the running speed and the

product uniformity.

Product Name	ATOP ITO Transparent Conductive Film Rolling Vacuum Plating Machine
Vacuum Chamber Size	Decide according to the substrate size and output
Substrate	Liquid crystal displays, plasma displays, electroluminescent display, touch screen, solar cells, flexible circuit boards and other conductive glass and electronic instrument.
Coating Film	High transparent conductive films
Coating Colors	Gold, rose gold,coffee,brown,bronze,blue,rainbow etc.
Applications	Mainly suitable for liquid crystal displays, plasma displays, electroluminescent display, touch screen, solar cells, flexible circuit boards and other conductive glass and electronic instrument high transparent conductive films.
Structure	Vertical type ; horizontal type ; single door type ; double-door type.
Features	The rolling system adopts high precision servo frequency conversation to control the speed. stable operation, high coating speed, when it release and loading the products. It will be very neat, no scratch, no drape to material.
Configuration	High pumping speed, high efficiency, energy saving, full automatic process controller can be simple, reliable, beautiful.
Weight	3Tons-8Tons accordingly
