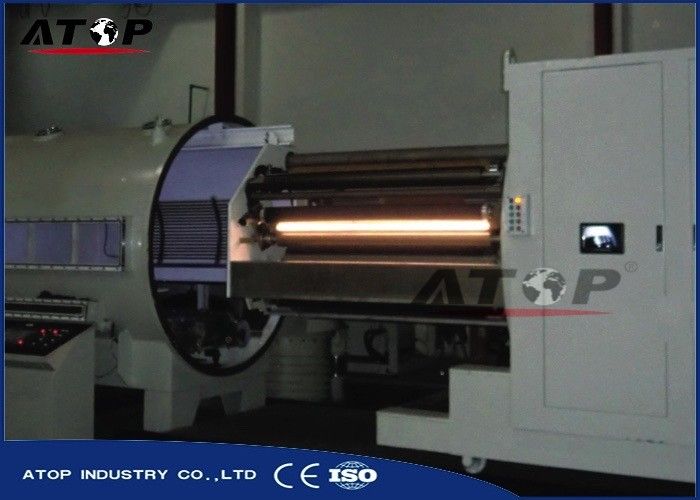

Induction Web Coating Machine With Horizontal Cylindrical Vacuum Chamber

China Induction Web Coating Machine With Horizontal Cylindrical Vacuum Chamber supplier
Induction Web Coating Machine With Horizontal Cylindrical Vacuum Chamber supplier Induction Web Coating Machine With Horizontal Cylindrical Vacuum Chamber supplier Induction Web Coating Machine With Horizontal Cylindrical Vacuum Chamber supplier

Large Image :  Induction Web Coating Machine With Horizontal Cylindrical Vacuum Chamber

Product Details:

Place of Origin: China
Brand Name: ATOP
Certification: ISO9001
Model Number: ATJR

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: By negotiation
Packaging Details: In film
Delivery Time: 60working days
Payment Terms: L/C, T/T
Supply Ability: 200 sets/year
Contact Now
Detailed Product Description
Warranty: 12 Months Substrate: Plastic Film, Paper Sheet, Cloth Etc.
Certification: ISO,CE Condition: New
After Sale Service: Engineers Avaliable To Service Machinery Oversea Customization: Yes

ATOP Roll To Roll Induction Heating Evaporation Vacuum Web Coating Machine





Basic Configuration





This equipment is mainly composed of vacuum pumping system, vacuum chamber, base material winding



system, aluminum evaporation system, electric control cabinet and steam plating operation station.





1. Vacuum chamber is made of horizontal cylindrical or square, 304 stainless steel or high quality carbon



steel. The vacuum chamber size can be customized according to the width and volume of customers'



products.





2. The vacuum system is composed of 1 to 2 diffuser, roots pump, mechanical pump, etc., and adopts



pneumatic and solenoid valve;





3. The winding system adopts 6-10 roller, which is driven by an electric motor with rollers, roll rollers and



water-cooling rolls;





4. The coating system can choose evaporating wire coating system, inductive evaporation system and



magnetron sputtering coating system according to the product.The wire feeding mechanism and induction



heating system contain crucible, electrode, water cooling, wire feeding machine, power supply, etc.The



magnetron sputtering can be matched with 1-10 plane targets and sputtering power sources;





5. Vacuum auxiliary pumping system is equipped with a quick circulating low temperature water vapor trap.





Product Name


ATOP Roll To Roll Induction Heating Evaporation Vacuum Web Coating Machine



Vacuum Chamber Size

Decide according to the substrate size and output

Substrate

Plastic film, paper sheet, Cloth etc.

Coating Film

Decorative film,metal film,etc

Coating Colors

Gold, rose gold,coffee,brown,bronze,blue,rainbow etc.
Applications


Package, printing, anti-counterfeiting, Textile, electronic industry and so on.



Structure

Vertical type ; horizontal type ; single door type ; double-door type.
Features


The rolling system adopts high precision servo frequency conversation to control the



speed. stable operation, high coating speed, when it release and loading the



products. It will be very neat, no scratch, no drape to material.


Configuration

High pumping speed, high efficiency, energy saving, full automatic process controller

can be simple, reliable, beautiful.

Weight

3Tons-8Tons accordingly






Application Field



Evaporation, magnetron series rolling vacuum coating machine are mainly used to do the metal film on the

surface on the plastic, cloth, paper, tinsel. These products will be widely used on package, printing, anti-

counterfeiting, textile, electronic industry and so on.





Main Feature



1. The rolling system adopts high precision servo frequency conversation to control the speed. stable

operation, high coating speed, when it release and loading the products. It will be very neat, no scratch,

no drape to material.


2. The tension system uses the digital control, high tension, constant Linear velocity, the moving speed

faster.


3. Each wire-feeding unit controlled by computer motor separately. The speed can be adjusted together

or separately with speed display.


4. Equipped with high standard vacuum pump system, with large vacuum pump speed, by PLC control.


5. Equipped with big capacity power source, high coating efficiency, good coating uniformity.


6. Stable operation, neatly release and loading, good coating uniformity, short production cycle, low

energy consumption, easy operation and maintenance, stable performance and other more advantages.






Coating Samples


Induction Web Coating Machine With Horizontal Cylindrical Vacuum Chamber
