Electronic Beam Web Coating Machine , Full Automatic Thin Film Coating Machine

China Electronic Beam Web Coating Machine , Full Automatic Thin Film Coating Machine  supplier
Electronic Beam Web Coating Machine , Full Automatic Thin Film Coating Machine  supplier Electronic Beam Web Coating Machine , Full Automatic Thin Film Coating Machine  supplier

Large Image :  Electronic Beam Web Coating Machine , Full Automatic Thin Film Coating Machine

Product Details:

Place of Origin: China
Brand Name: ATOP
Certification: ISO9001
Model Number: ATJR

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: By negotiation
Packaging Details: In film
Delivery Time: 60working days
Payment Terms: L/C, T/T
Supply Ability: 200 sets/year
Contact Now
Detailed Product Description
Chamber Material: SUS304 Substrate: Plastic, Paper, Cloth Etc.
Operating System: PLC Touching Screen Business Type: Manufacturer
Place Of Origin: Jiangsu, China (Mainland) Customization: Yes

ATOP PET PVC Thin Film Electron Beam Evaporation

Vacuum Rolling Web Coating Machine




Product Category


Electronic beam heating evaporation vacuum rolling coating machine are mainly used for high-melting
material coating purpose, for example : Si02 material.
Magnetron sputtering vacuum rolling coating machine deposition rate is low, however, it have a wide
range application and high adhesion force advantages.

According to the working principle can be divided into the following categories:

Resistance heating evaporation vacuum rolling machine

Induction heating evaporation vacuum rolling machine

Electronic beam heating evaporation vacuum rolling coating machine

Magnetron sputtering vacuum rolling coating machine




Application Field



Evaporation, magnetron series rolling vacuum coating machine are mainly used to do the metal film on the

surface on the plastic, cloth, paper, tinsel. These products will be widely used on package, printing, anti-

counterfeiting, textile, electronic industry and so on.



Product Name


ATOP PET PVC Thin Film Electron Beam Evaporation Vacuum Rolling Web Coating

Machine



Vacuum Chamber Size

Decide according to the substrate size and output

Substrate

Plastic film, paper sheet, Cloth etc.

Coating Film

Decorative film,metal film,etc

Coating Colors

Gold, rose gold,coffee,brown,bronze,blue,rainbow etc.
Applications


Package, printing, anti-counterfeiting, Textile, electronic industry and so on.



Structure

Vertical type ; horizontal type ; single door type ; double-door type.
Features


The rolling system adopts high precision servo frequency conversation to control the

speed. stable operation, high coating speed, when it release and loading the

products. It will be very neat, no scratch, no drape to material.


Configuration

High pumping speed, high efficiency, energy saving, full automatic process controller

can be simple, reliable, beautiful.

Weight

3Tons-8Tons accordingly





Basic Configuration



This equipment is mainly composed of vacuum pumping system, vacuum chamber, base material winding

system, aluminum evaporation system, electric control cabinet and steam plating operation station.


1. Vacuum chamber is made of horizontal cylindrical or square, 304 stainless steel or high quality carbon

steel. The vacuum chamber size can be customized according to the width and volume of customers'

products.


2. The vacuum system is composed of 1 to 2 diffuser, roots pump, mechanical pump, etc., and adopts

pneumatic and solenoid valve;


3. The winding system adopts 6-10 roller, which is driven by an electric motor with rollers, roll rollers and

water-cooling rolls;


4. The coating system can choose evaporating wire coating system, inductive evaporation system and

magnetron sputtering coating system according to the product.The wire feeding mechanism and induction

heating system contain crucible, electrode, water cooling, wire feeding machine, power supply, etc.The

magnetron sputtering can be matched with 1-10 plane targets and sputtering power sources;


5. Vacuum auxiliary pumping system is equipped with a quick circulating low temperature water vapor trap.





Main Feature



1. The rolling system adopts high precision servo frequency conversation to control the speed. stable

operation, high coating speed, when it release and loading the products. It will be very neat, no scratch,

no drape to material.


2. The tension system uses the digital control, high tension, constant Linear velocity, the moving speed

faster.


3. Each wire-feeding unit controlled by computer motor separately. The speed can be adjusted together

or separately with speed display.


4. Equipped with high standard vacuum pump system, with large vacuum pump speed, by PLC control.


5. Equipped with big capacity power source, high coating efficiency, good coating uniformity.


6. Stable operation, neatly release and loading, good coating uniformity, short production cycle, low

energy consumption, easy operation and maintenance, stable performance and other more advantages.

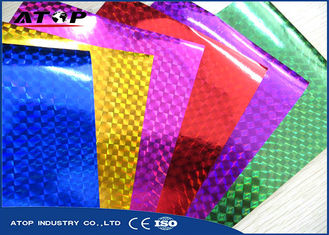

Coating Samples


Electronic Beam Web Coating Machine , Full Automatic Thin Film Coating Machine
