Tinsel / Paper Metal Film Roller Coating Machine , Hot Melt Coating Machine

China Tinsel / Paper Metal Film Roller Coating Machine , Hot Melt Coating Machine supplier
Tinsel / Paper Metal Film Roller Coating Machine , Hot Melt Coating Machine supplier Tinsel / Paper Metal Film Roller Coating Machine , Hot Melt Coating Machine supplier

Large Image :  Tinsel / Paper Metal Film Roller Coating Machine , Hot Melt Coating Machine

Product Details:

Place of Origin: China
Brand Name: ATOP
Certification: ISO9001
Model Number: ATJR

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: By negotiation
Packaging Details: In film
Delivery Time: 60working days
Payment Terms: L/C, T/T
Supply Ability: 200 sets/year
Contact Now
Detailed Product Description
After Sale Service: Engineers Avaliable To Service Machinery Oversea Voltage: 380V
Operating System: PLC Touching Screen Customization: Yes
Technology: Vacuu Web Coating Place Of Origin: Jiangsu, China (Mainland)

ATOP Tinsel/Paper Metal Film Roll To Roll Vacuum Web Coating Machine




Product Category



Resistance heating evaporation vacuum rolling machine

Induction heating evaporation vacuum rolling machine

Electronic beam heating evaporation vacuum rolling coating machine

Magnetron sputtering vacuum rolling coating machine

Electronic beam heating evaporation vacuum rolling coating machine are mainly used for high-melting

material coating purpose, for example : Si02 material.

Magnetron sputtering vacuum rolling coating machine deposition rate is low, however, it have a wide

range application and high adhesion force advantages.




Basic configuration



This equipment is mainly composed of vacuum pumping system, vacuum chamber, base material winding

system, aluminum evaporation system, electric control cabinet and steam plating operation station.


1. Vacuum chamber is made of horizontal cylindrical or square, 304 stainless steel or high quality carbon

steel. The vacuum chamber size can be customized according to the width and volume of customers'

products.


2. The vacuum system is composed of 1 to 2 diffuser, roots pump, mechanical pump, etc., and adopts

pneumatic and solenoid valve;


3. The winding system adopts 6-10 roller, which is driven by an electric motor with rollers, roll rollers and

water-cooling rolls;


4. The coating system can choose evaporating wire coating system, inductive evaporation system and

magnetron sputtering coating system according to the product.The wire feeding mechanism and induction

heating system contain crucible, electrode, water cooling, wire feeding machine, power supply, etc.The

magnetron sputtering can be matched with 1-10 plane targets and sputtering power sources;


5. Vacuum auxiliary pumping system is equipped with a quick circulating low temperature water vapor trap.



Product Name


ATOP Tinsel/Paper Metal Film Roll To Roll Vacuum Web Coating Machine



Vacuum Chamber Size

Decide according to the substrate size and output

Substrate

Plastic film, paper sheet, Cloth etc.

Coating Film

Decorative film,metal film,etc

Coating Colors

Gold, rose gold,coffee,brown,bronze,blue,rainbow etc.
Applications


Package, printing, anti-counterfeiting, Textile, electronic industry and so on.



Structure

Vertical type ; horizontal type ; single door type ; double-door type.
Features


The rolling system adopts high precision servo frequency conversation to control the

speed. stable operation, high coating speed, when it release and loading the

products. It will be very neat, no scratch, no drape to material.


Configuration

High pumping speed, high efficiency, energy saving, full automatic process controller

can be simple, reliable, beautiful.

Weight

3Tons-8Tons accordingly





Configuration



Machine includes the design as following:


1)Fill-and-draw operation:Roll to Roll in the vacuum chamber

2)Double vacuum systems:Divided into Rolling chamber and Vapor chamber and each have separate

vacuum pumps unit.

3)Cooling roller:The film would be cooled by the roller after metalizing rapidly.

4)Hot evaporation system:Thermal heating evaporation boats, and supply aluminum continuously.

5)Digital control of film driving system:Includes 3 groups of Servo motor




Main Feature


1. Each wire-feeding unit controlled by computer motor separately. The speed can be adjusted together

or separately with speed display.


2. Equipped with high standard vacuum pump system, with large vacuum pump speed, by PLC control.


3. Equipped with big capacity power source, high coating efficiency, good coating uniformity.


4. Stable operation, neatly release and loading, good coating uniformity, short production cycle, low

energy consumption, easy operation and maintenance, stable performance and other more advantages.



5. The rolling system adopts high precision servo frequency conversation to control the speed. stable

operation, high coating speed, when it release and loading the products. It will be very neat, no scratch,

no drape to material.

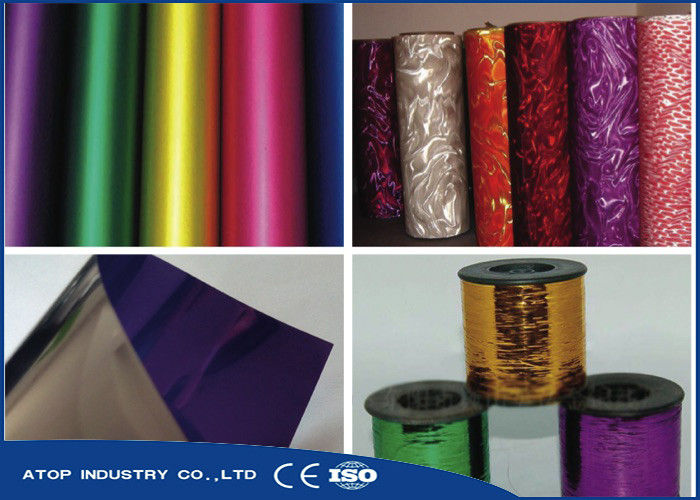

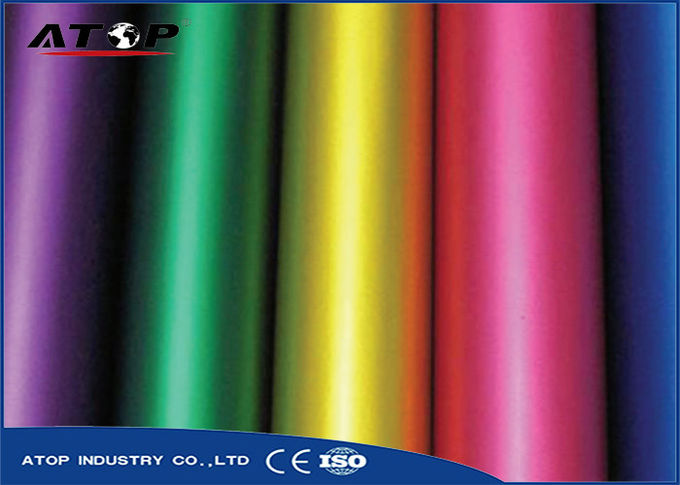

Coating Samples


Tinsel / Paper Metal Film Roller Coating Machine , Hot Melt Coating Machine
