High Precision SiO2 Web Coating Machine With Cold Trap And Loop Cooling System

China High Precision SiO2 Web Coating Machine With Cold Trap And Loop Cooling System supplier
High Precision SiO2 Web Coating Machine With Cold Trap And Loop Cooling System supplier High Precision SiO2 Web Coating Machine With Cold Trap And Loop Cooling System supplier

Large Image :  High Precision SiO2 Web Coating Machine With Cold Trap And Loop Cooling System

Product Details:

Place of Origin: China
Brand Name: ATOP
Certification: ISO9001
Model Number: ATJR

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: By negotiation
Packaging Details: In film
Delivery Time: 60working days
Payment Terms: L/C, T/T
Supply Ability: 200 sets/year
Contact Now
Detailed Product Description
Operating System: PLC Touching Screen Substrate: Plastic, Paper, Cloth Etc.
Business Type: Manufacturer Chamber Material: SUS304
Coating Film: Decoration Film, Function Film Control System: Manual Automatic All-in-One

ATOP SiO2 Electronic Beam Heating Evaporation Vacuum Web Coating Machine





Configuration





1)2 pieces of nip rolls( angle and bending are adjustable )



2)Process control system (PLC) and auto start process.



3)Touch screen operation system.



4)Filming roll which -15℃cooling and heat system to avoid the heat damage on the film.



5)Cold trap and loop cooling system.




Product Category


According to the working principle can be divided into the following categories:

Resistance heating evaporation vacuum rolling machine

Induction heating evaporation vacuum rolling machine

Electronic beam heating evaporation vacuum rolling coating machine

Magnetron sputtering vacuum rolling coating machine

Electronic beam heating evaporation vacuum rolling coating machine are mainly used for high-melting

material coating purpose, for example : Si02 material.

Magnetron sputtering vacuum rolling coating machine deposition rate is low, however, it have a wide

range application and high adhesion force advantages.




Product Name


ATOP SiO2 Electronic Beam Heating Evaporation Vacuum Web Coating Machine



Vacuum Chamber Size

Decide according to the substrate size and output

Substrate

Plastic film, paper sheet, Cloth etc.

Coating Film

Decorative film,metal film,etc

Coating Colors

Gold, rose gold,coffee,brown,bronze,blue,rainbow etc.
Applications


Package, printing, anti-counterfeiting, Textile, electronic industry and so on.



Structure

Vertical type ; horizontal type ; single door type ; double-door type.
Features


The rolling system adopts high precision servo frequency conversation to control the

speed. stable operation, high coating speed, when it release and loading the

products. It will be very neat, no scratch, no drape to material.


Configuration

High pumping speed, high efficiency, energy saving, full automatic process controller

can be simple, reliable, beautiful.

Weight

3Tons-8Tons accordingly







Main Feature



1. The rolling system adopts high precision servo frequency conversation to control the speed. stable

operation, high coating speed, when it release and loading the products. It will be very neat, no scratch,

no drape to material.


2. The tension system uses the digital control, high tension, constant Linear velocity, the moving speed

faster.


3. Each wire-feeding unit controlled by computer motor separately. The speed can be adjusted together

or separately with speed display.


4. Equipped with high standard vacuum pump system, with large vacuum pump speed, by PLC control.


5. Equipped with big capacity power source, high coating efficiency, good coating uniformity.

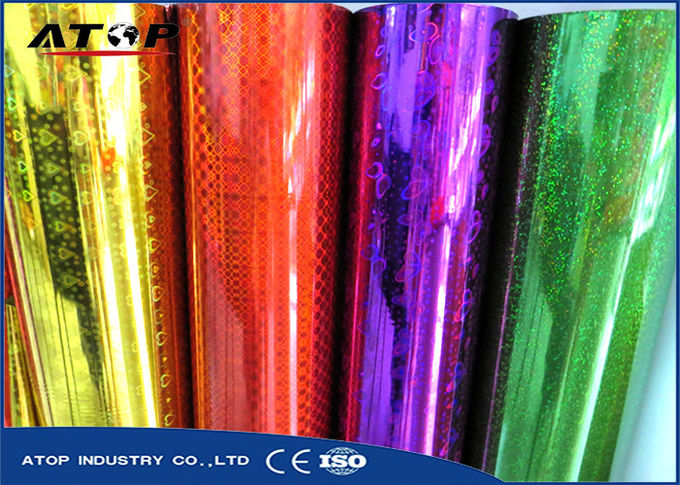

Coating Samples


High Precision SiO2 Web Coating Machine With Cold Trap And Loop Cooling System
