Magnetron Sputtering Roll To Roll Coating Machines With Hot Evaporation System

China Magnetron Sputtering Roll To Roll Coating Machines With Hot Evaporation System supplier
Magnetron Sputtering Roll To Roll Coating Machines With Hot Evaporation System supplier Magnetron Sputtering Roll To Roll Coating Machines With Hot Evaporation System supplier

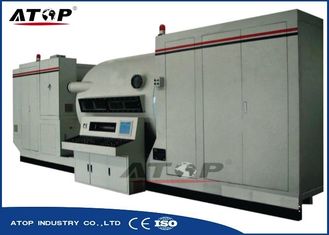

Large Image :  Magnetron Sputtering Roll To Roll Coating Machines With Hot Evaporation System

Product Details:

Place of Origin: China
Brand Name: ATOP
Certification: ISO9001
Model Number: ATJR

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: By negotiation
Packaging Details: In film
Delivery Time: 60working days
Payment Terms: L/C, T/T
Supply Ability: 200 sets/year
Contact Now
Detailed Product Description
After Sale Service: Engineers Avaliable To Service Machinery Oversea Substrate: Plastic, Paper, Cloth Etc.
Coating Film: Decoration Film, Function Film Business Type: Manufacturer
Technolog: Vacuum Web Coating Limited Vacuum Degree: 8*10-4Pa

ATOP Evaporation Magnetron Sputtering Roll To Roll Vacuum Web Coater Machine






Configuration



Machine includes the design as following:


1)Fill-and-draw operation:Roll to Roll in the vacuum chamber

2)Double vacuum systems:Divided into Rolling chamber and Vapor chamber and each have separate

vacuum pumps unit.

3)Cooling roller:The film would be cooled by the roller after metalizing rapidly.

4)Hot evaporation system:Thermal heating evaporation boats, and supply aluminum continuously.

5)Digital control of film driving system:Includes 3 groups of Servo motor


1)2 pieces of nip rolls( angle and bending are adjustable )

2)Process control system (PLC) and auto start process.

3)Touch screen operation system.

4)Filming roll which -15℃cooling and heat system to avoid the heat damage on the film.

5)Cold trap and loop cooling system.




Main Feature


1. The rolling system adopts high precision servo frequency conversation to control the speed. stable

operation, high coating speed, when it release and loading the products. It will be very neat, no scratch,

no drape to material.

2. The tension system uses the digital control, high tension, constant Linear velocity, the moving speed

faster.

3. Each wire-feeding unit controlled by computer motor separately. The speed can be adjusted together

or separately with speed display.

4. Equipped with high standard vacuum pump system, with large vacuum pump speed, by PLC control.

5. Equipped with big capacity power source, high coating efficiency, good coating uniformity.







Product Name


ATOP Evaporation Magnetron Sputtering Roll To Roll Vacuum Web Coater Machine


Vacuum Chamber Size

Decide according to the substrate size and output

Substrate

Plastic film, paper sheet, Cloth etc.

Coating Film

Decorative film,metal film,etc

Coating Colors

Gold, rose gold,coffee,brown,bronze,blue,rainbow etc.
Applications


Package, printing, anti-counterfeiting, Textile, electronic industry and so on.



Structure

Vertical type ; horizontal type ; single door type ; double-door type.
Features


The rolling system adopts high precision servo frequency conversation to control the

speed. stable operation, high coating speed, when it release and loading the

products. It will be very neat, no scratch, no drape to material.


Configuration

High pumping speed, high efficiency, energy saving, full automatic process controller

can be simple, reliable, beautiful.

Weight

3Tons-8Tons accordingly





Application Field




Evaporation, magnetron series rolling vacuum coating machine are mainly used to do the metal film on the

surface on the plastic, cloth, paper, tinsel. These products will be widely used on package, printing, anti-

counterfeiting, textile, electronic industry and so on.




Coating Samples


Magnetron Sputtering Roll To Roll Coating Machines With Hot Evaporation System
