Glass Bangles Plasma Coating Machine Titanium evaporation Horizontal Type

China Glass Bangles Plasma Coating Machine Titanium evaporation Horizontal Type supplier
Glass Bangles Plasma Coating Machine Titanium evaporation Horizontal Type supplier Glass Bangles Plasma Coating Machine Titanium evaporation Horizontal Type supplier

Large Image :  Glass Bangles Plasma Coating Machine Titanium evaporation Horizontal Type

Product Details:

Place of Origin: China
Brand Name: ATOP
Certification: ISO9001
Model Number: ATDJW

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: By negotiation
Packaging Details: in Film
Delivery Time: 60working days
Payment Terms: L/C, T/T
Supply Ability: 200 sets/year
Contact Now
Detailed Product Description
Operating System: PLC Touching Screen Condition: New
Product Name: Vacuum Coating Machine Voltage: 380V
After Sale Service: Engineers Avaliable To Service Machinery Oversea Limited Vacuum Degree: 8*10-4Pa

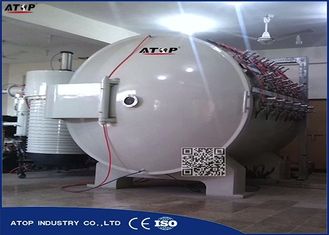

ATOP Horizontal Type Glass Bangles Plasma PVD Coating Machine




The machine is consist of vacuum chamber, vacuum pumping system, bias power supply, coating system,

work-piece rotating system, cooling system and electrical controlling system.




Main Feature






Product Name


ATOP Horizontal Type Glass Bangles Plasma PVD Coating Machine


Vacuum Chamber Size


Decide according to the substrate size and output



Substrate



Glass, Plastic, metal bangles, rings etc



Coating Film





High-grade decorative coating.



Coating Colors



Gold, rose gold,silver,purple,red,blue,black,white,gray etc.

Applications



Glass, Plastic, metal bangles, rings etc




Structure



Horizontal type ; single door type

Features



Equipped with 1-2 sets new model evaporation electrode, ion source etc. easy

installation and discharge, convenient maintenance. Work rack flexible and reliable

by public rotation of gear transmission structure.



Configuration



High pumping speed, high efficiency, energy saving, full automatic process controller

can be simple, reliable, beautiful.



Weight



3Tons-8Tons accordingly






Application Field




1.It can be widely used to do the decorative coating and function coating on the surface of plastic,

ceramic, glass, resin,candle and metal material.


2.High efficiency,full automatic,integrating the vacuum technology,evaporation coating and

electromechanical integration technology together,Its an ideal equipment to do the high-grade decorative

coating.


3.It can be widely used in crafts,gifts,hardware appliances,accessories and electronics,machinery,light

industry and other industries.




Normal working conditions of the machine





(1). Power supply: five-wire three-phase, 380V±5%, 50Hz, with ground resistance<5Ω.





(2). Compressed air : 0.5~0.7Mpa.





(3). Cooling water can use city tap water, deionized water is best. Temperature of cooling water should



less than 25 °C . Water pressure should be 0.2Mpa to 0.4Mpa. And the water resource should have the



ability to add new water in rate more than one hundred liter per minute.




(4). Environmental condition: Floor, ceiling and walls should be clean. Indoor air should be clean, dry and



no-dust. No flammable, explosive and corrosive gas indoors.





(5). Coating air: Ar2,C2H2, N2, O2, high purity(≥99.99%).

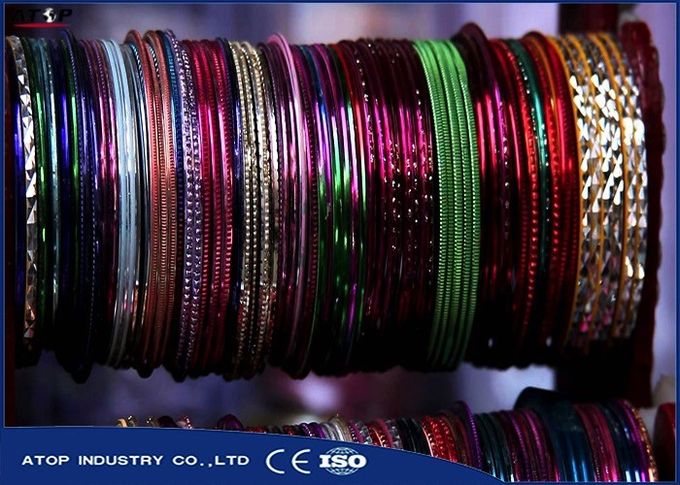

Coating Samples



Glass Bangles Plasma Coating Machine Titanium evaporation Horizontal TypeGlass Bangles Plasma Coating Machine Titanium evaporation Horizontal Type
