Vertical Diamond Plasma Coating Machine , Metal Hard TiN Coating Machine

ATOP Diamond Metal Files Vertical TiN/Hard Titanium Nitride Coating Machine

Normal working conditions of the machine

(1). Environmental temperature : about 25℃

(2). Relative humidity: <80%

(3). Cooling water can use city tap water, deionized water is best. Temperature of cooling water should

less than 25℃. Water pressure should be 0.2Mpa to 0.4Mpa. And the water resource should have the

ability to add new water in rate more than one hundred liter per minute.

(4). Power supply: five-wire three-phase, 380V±5%, 50Hz, with ground resistance<5Ω

(5). Compressed air : 0.5～0.7Mpa

(6). Environmental condition: Floor, ceiling and walls should be clean. Indoor air should be clean, dry and

no-dust. No flammable, explosive and corrosive gas indoors.

(7). The machine is harmonious with environment and only pumping some pollution free gas. Therefore it

can be placed with other machines.

(8). Pretreatment machines like ultrasonic cleaning machine or oven, depending on products

This equipment is a multi functional coating equipment, which can be installed at the same time two to six

different target material, pure metal or alloy plating nano meter film of single layer or multi layer, high-

performance and super hard film layer, excellent wear resistance and corrosion resistance and

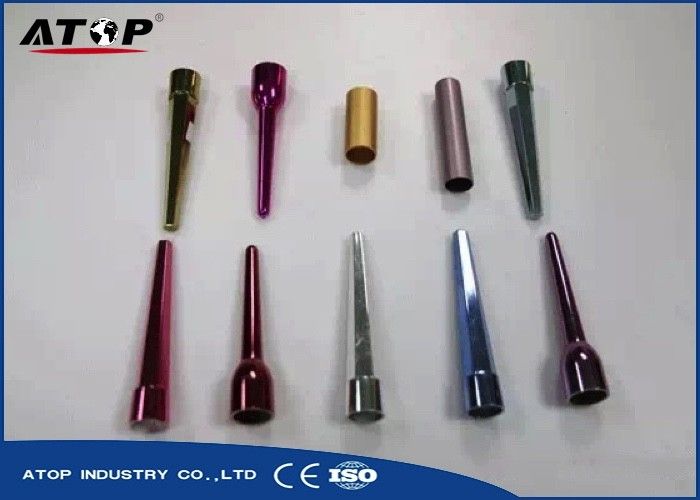

beautification effect, mainly used in drill bits, milling cutter, core shaft, blades, precision mould, cutting

tools, etc.



The machine is consist of vacuum chamber, vacuum pumping system, bias power supply, coating system,

gas system, control system,alarm system and heating system .





1.Plasma source assisted deposition technology,pre-cleaning and the auxiliary deposition to the work

piece.

2. Adopt the high power pulse bias power supply enhance the coating adhesion.

3. Adopt multiple sets of twin arc,which can install 2-6 different target materials.Pure metal or alloy

composite nano film layer is achieved.

4.The work piece rack adopts rotation and revolution structure,large loading capacity and temperature

resistance.The frame can move out of the chamber which is convenient to load heavy molds.The work

piece rack can be customized according to customer requirements and adopts inverter to adjust,and

infinitely adjustable speed.

5. The touch screen and PLC.This machine can realize automatic control,automatic and manual switch.
