Anti - Friction Diamond Like Carbon Coating Equipment For Watches Bezel

China Anti - Friction Diamond Like Carbon Coating Equipment For Watches Bezel supplier
Anti - Friction Diamond Like Carbon Coating Equipment For Watches Bezel supplier Anti - Friction Diamond Like Carbon Coating Equipment For Watches Bezel supplier

Large Image :  Anti - Friction Diamond Like Carbon Coating Equipment For Watches Bezel

Product Details:

Place of Origin: China
Brand Name: ATOP
Certification: ISO9001
Model Number: ATDLC

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: By negotiation
Packaging Details: In film
Delivery Time: 60working days
Payment Terms: L/C, T/T
Supply Ability: 200 sets/year
Contact Now
Detailed Product Description
Control System: Manual Automatic All-in-One Business Type: Manufacturer
Certification: ISO,CE Operating System: PLC Touching Screen
Product Name: Vacuum Coating Machine Limited Vacuum Degree: 8*10-4Pa





ATOP Anti-Friction Film DLC Film Vacuum Plating Machine For Watches Bezel







Main Feature





1.The work piece rack adopts rotation and revolution structure,large loading capacity and temperature

resistance.The frame can move out of the chamber which is convenient to load heavy molds.The work

piece rack can be customized according to customer requirements and adopts inverter to adjust,and

infinitely adjustable speed.



2. The touch screen and PLC.This machine can realize automatic control,automatic and manual switch.



3.Plasma source assisted deposition technology,pre-cleaning and the auxiliary deposition to the work

piece.



4. Adopt the high power pulse bias power supply enhance the coating adhesion.



5. Adopt multiple sets of twin arc,which can install 2-6 different target materials.Pure metal or alloy

composite nano film layer is achieved.







Basic Configuration




1. Coating room: the traditional vertical or efficient horizontal structure design, full stainless steel material,



vacuum chamber of the effective diameter 800 mm to 2000 mm, double walled water cooling structure,



with plug-in in antifouling stainless steel plate, easy to clean and operation, etc.





2. The vacuum system: mechanical pump, rotary vane pump, roots pump, molecular pump, cryogenic



pump, with cold trap of high vacuum oil diffusion pump large pumping speed extraction system, the



backing pump optional oil-free vacuum pumps, stainless steel pipes and valves.





3. The coating system: adopting multiple sets of intermediate frequency magnetron sputtering power



supply, with 1-2 of the unbalanced magnetron target, and is equipped with 6-14 hot cathode arc, and the



arc power supply, dc superposition pulsed bias power supply, the international leading level of arc source



and anode layer ion source;Equipped with 1-2 sets of original imported off-loading source.





4. Inflating system: automatic gas flowmeter and flow display instrument control.





5. Control system: color touch screen, PLC, automatic and manual control can be converted at any



time.Real-time display detailed parameters, fully automatic control of the entire production process,



automatic storage process parameters.The main electrical components are famous brands such as



schneider.






Product Name




ATOP Anti-Friction Film DLC Film Vacuum Plating Machine For Watches Bezel



Vacuum Chamber Size

Decide according to the substrate size and output

Substrate



Drill bits, milling cutter, core shaft, blades, precision mould, cutting tools, etc.


Coating Film

 Pure metal or alloy composite nano film

Coating Colors

Gold, silver, black etc.

Structure

Vertical type ; horizontal type ; single door type ; double-door type.
Features


Adopt multiple sets of twin arc, which can install 2-6 different target materials. Pure

metal or alloy composite nano film layer is achieved.


Configuration

Plasma source assisted deposition technology,pre-cleaning and the auxiliary

deposition to the work piece.   Adopt the high power pulse bias power supply

enhance the coating adhesion.

Weight

3Tons-5Tons accordingly









Application Field





1.This equipment is a multi functional coating equipment, which can be installed at the same time two to



six different target material, pure metal or alloy plating nano meter film of single layer or multi layer, high-



performance and super hard film layer, excellent wear resistance and corrosion resistance and



beautification effect, mainly used in drill bits, milling cutter, core shaft, blades, precision mould, cutting



tools, etc.




2.Super-hard wear-resistant film, self-lubricating and anti-friction diamond-like coatings.

.



3.Automotive, non-ferrous material machining and industrial engineering environments.

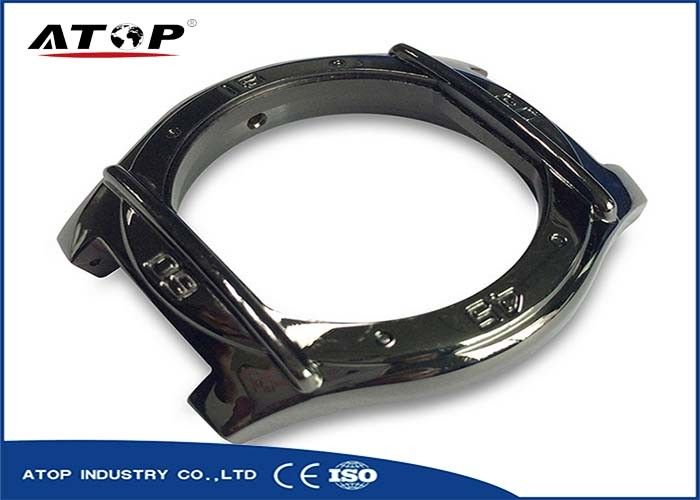

Coating Samples


Anti - Friction Diamond Like Carbon Coating Equipment For Watches Bezel
