Product Details:
Payment & Shipping Terms:
|
| Applications: | For Diamond Like Carbon Coating For Improve Hardness | Voltage: | 380V |
|---|---|---|---|
| Certification: | ISO,CE | Business Type: | Manufacturer |
| Operating System: | PLC Touching Screen | Limited Vacuum Degree: | 8*10-4Pa |

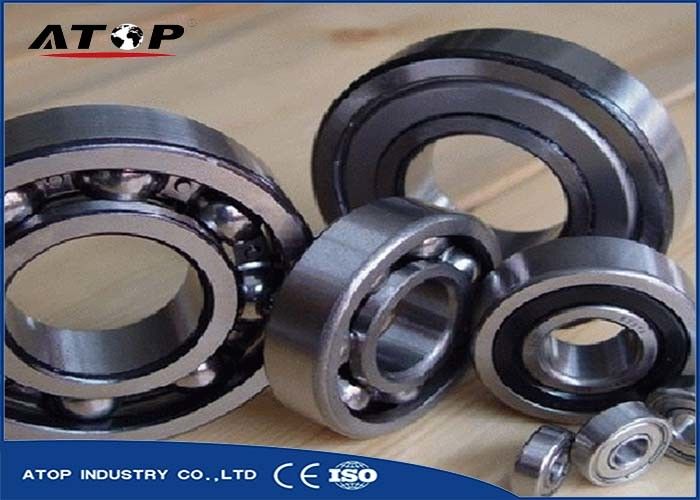

ATOP Bearing/Watch Accessories DLC Coating Vacuum Coating Machine
1. Adopt multiple sets of twin arc,which can install 2-6 different target materials.Pure metal or alloy
composite nano film layer is achieved.
2.The work piece rack adopts rotation and revolution structure,large loading capacity and temperature
resistance.The frame can move out of the chamber which is convenient to load heavy molds.The work
piece rack can be customized according to customer requirements and adopts inverter to adjust,and
infinitely adjustable speed.
3 The touch screen and PLC.This machine can realize automatic control,automatic and manual switch.
|
|
ATOP Bearing/Watch Accessories DLC Coating Vacuum Coating Machine |
|
Vacuum Chamber Size
|
Decide according to the substrate size and output
|
|
Substrate
|
Drill bits, milling cutter, core shaft, blades, precision mould, cutting tools, etc. |
|
Coating Film
|
Pure metal or alloy composite nano film
|
|
Coating Colors
|
Gold, silver, black etc.
|
|
Structure
|
Vertical type ; horizontal type ; single door type ; double-door type.
|
|
Features
|
Adopt multiple sets of twin arc, which can install 2-6 different target materials. Pure |
|
Configuration
|
Plasma source assisted deposition technology,pre-cleaning and the auxiliary
deposition to the work piece. Adopt the high power pulse bias power supply
enhance the coating adhesion.
|
|
Weight
|
3Tons-5Tons accordingly
|
1.Super-hard wear-resistant film, self-lubricating and anti-friction diamond-like coatings.
.
2.Automotive, non-ferrous material machining and industrial engineering environments.
3.This equipment is a multi functional coating equipment, which can be installed at the same time two to
six different target material, pure metal or alloy plating nano meter film of single layer or multi layer, high-
performance and super hard film layer, excellent wear resistance and corrosion resistance and
beautification effect, mainly used in drill bits, milling cutter, core shaft, blades, precision mould, cutting
tools, etc.
1. The vacuum system: mechanical pump, rotary vane pump, roots pump, molecular pump, cryogenic
pump, with cold trap of high vacuum oil diffusion pump large pumping speed extraction system, the
backing pump optional oil-free vacuum pump, stainless steel pipes and valves.
2. The coating system: the 1 set - six sets of high-power magnetic deflection 270 ° e electron gun and
multiple point crucible, assisted deposition system configuration hall ion source and resistance of
evaporation source.
3. Inflating system: automatic gas flowmeter and flow display instrument control.
4. Control system: color touch screen, PLC, automatic and manual control can be converted at any
time.Real-time display detailed parameters, fully automatic control of the entire production process,
automatic storage process parameters.The main electrical components are famous brands such as
schneider.
5. Safety system: setting up the acoustic optical alarm device of water, electricity and gas anomaly, and
implementing the corresponding protection procedure.
6. Heating and baking system: adopt a stainless steel tube heating body, the substrate temperature can
reach 350 degrees, the temperature control meter adopts the Japanese conductive instrument, the
temperature control precision is plus or minus 1 degree Celsius.
7. Film thickness control: quartz crystal film thickness monitoring system, which can control the
evaporation rate of the electron gun, accurately control the film thickness, and automatically switch easily
and automatically.
8. Electron gun and the evaporation source: electron gun power source adopts the power frequency
voltage rise, digital control circuits, sparking with high-pressure automatic protection, restoration and
steady beam function, remote control, can commune with quartz crystal thickness meter, coating process
automatic control.
