Product Details:
Payment & Shipping Terms:
|
| After-sales Service: | Engineers Avaliable To Service Machinery Oversea | Place Of Origin: | Jiangsu, China (Mainland) |
|---|---|---|---|
| Customization: | Yes | Coating Color: | Gold, Rose Gold, Silver Etc. |
| Substrate: | Plastic, Metal, Glass Etc. | Coating Film: | PVD Coating Machine |
1, the selection of a variety of structures, such as: vertical type, horizontal type, single door, two-door,
SUS 304 or carbon steel manufacturing, vacuum chamber size from Φ600 mm to Φ2200 mm ;
2. The vacuum system consists of mechanical pump, rotary vane pump, roots pump and cold well high
vacuum oil diffusion pump, or energy saving, pollution-free, noiseless, high efficiency molecular pump
composition;
3. The coating system adopts 1--2 sets of new structure copper electrode resistance evaporation system
and power supply;
4. A low temperature water vapor trap can be used for the auxiliary pumping system;
5. The electric control system shall set up circuit overload, water breaking, and acoustic alarm device;
6. Control system (touch screen + PLC), display detailed parameters in real time, fully automatic control of
the entire production process, and automatic storage of process parameters.
1.High efficiency,full automatic,integrating the vacuum technology,evaporation coating and
electromechanical integration technology together,Its an ideal equipment to do the high-grade decorative
coating.
2.It can be widely used in crafts,gifts,hardware appliances,accessories and electronics,machinery,light
industry and other industries.

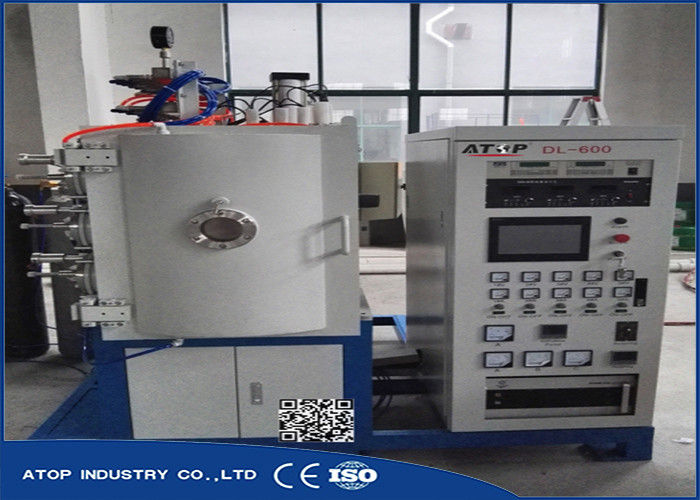

| ATOP Mini/Small Size Laboratory Vacuum Metallization Coating Machine For Plastic |
Vacuum Chamber Size | Decide according to the substrate size and output |
Substrate | |
Coating FIlm | High-grade decorative coating. |
Coating colors | Gold, rose gold,coffee,brown,bronze,blue,black,white,gray etc. |
| Applications | Hardware,glass crafts,ceramic crafts such us watches,mobile phone metal shell,sanitary ware,mould,electronic products,crystal glass, glasses, cutlery, knives and so on. |
Structure | vertical type ; horizontal type ; single door type ; double-door type. |
| Features: | Equipped with 1-2 sets new model evaporation electrode, easy installation and discharge, convenient maintenance. Work rack flexible and reliable by public rotation of gear transmission structure. |
| Configuration | High pumping speed, high efficiency, energy saving, full automatic process controller can be simple, reliable, beautiful. |
| Weight | 3Tons-8Tons accordingly |
1. Variety of structure : vertical type ; horizontal type ; single door type ; double-door type.
2. Equipped with 1-2 sets new model evaporation electrode, easy installation and discharge, convenient
maintenance. Work rack flexible and reliable by public rotation of gear transmission structure.
3. Reasonable configuration for the vacuum system. High pumping speed, high efficiency, energy saving,
full automatic process controller can be simple, reliable, beautiful.
