SUS304 Hardware Mulit Arc Ion PVD Vacuum Coating Machine With Rainbow Color

Certification
Good quality PVD Coating Machine for sales
I'm Online Chat Now

SUS304 Hardware Mulit Arc Ion PVD Vacuum Coating Machine With Rainbow Color

China SUS304 Hardware Mulit Arc Ion PVD Vacuum Coating Machine With Rainbow Color supplier
SUS304 Hardware Mulit Arc Ion PVD Vacuum Coating Machine With Rainbow Color supplier SUS304 Hardware Mulit Arc Ion PVD Vacuum Coating Machine With Rainbow Color supplier

Large Image :  SUS304 Hardware Mulit Arc Ion PVD Vacuum Coating Machine With Rainbow Color

Product Details:

Place of Origin: China
Brand Name: ATOP
Certification: ISO9001
Model Number: ATZK

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: By negotiation
Packaging Details: In film
Delivery Time: 60working days
Supply Ability: 200 sets/year
Contact Now
Detailed Product Description
Business Type: Manufacturer Certification: ISO,CE
After-sales Service Provided: Engineers Available To Service Machinery Overseas Chamber Material: SUS304
Limited Vacuum Degree: Vacuum Coating Machine Warranty: 12 Months

ATOP Hardware Mulit Arc Ion PVD Vacuum Coating Machine With Rainbow Color



Application Field





It applies to hardware,glass crafts,ceramic crafts,such us watches,mobile phone metal shell,sanitary



ware,mould,electronic products,crystal glass, glasses, cutlery, knives and so on.



You can make super-hard wear-resistant film coating, anti-corrosion film, decorative film(gold color,rose



gold,coffee,brown,bronze,blue,black,white,gray and other colors),it combined with magnetron sputtering



technique can be plated the multilayer composite membrane and manufactured plated stainless steel,



aluminum, titanium, tungsten and other metal films may be manufactured as coated TIN, TIC, TICN, TIALN,



CRN, CU, AU, diamond film (DLC), decorative film metal, film and non-metallic composite coating film and



its compounds film.





Basic Configuration




1, the coating chamber, valves and piping are made of stainless steel ,vacuum chamber size from Φ500



mm to Φ2000 mm.





2. The vacuum system consists of mechanical pump, rotary vane pump, roots pump and cold well high



vacuum oil diffusion pump or molecular pump.





3. The coating system adopts multiple flat target or cylindrical target, with multiple dc power or medium



frequency power supply.





4. The auxiliary pumping system adopts a low-temperature water vapor trap.





5. The gas flow meter and flow control (display) control of the pneumatic system are adopted.





6. The electric control system shall set up circuit overload, water breaking and sound alarm device of the



broken air.







Main Feature





1. High deposition rate, High coating speed, It can be widely used to do the decorative coating, functional



coating on a variety of products. So it is a ideal equipment to do the high-grade and best coating for mass



production.





2. Magnetron sputtering principle is based on the theory of the cathode glow discharge, it expend the



cathode surface magnetic field near the work piece surface. Then it improves the sputtered atom



ionization rate. It keeps the magnetron sputtering uniformity, also can improve the surface shining effect.





3. The arc plasma evaporation source is reliable, it can work under 40A current in optimizing the cathode



and the magnetic field structure,. It will happen atomic diffusion between the coating and the material. It



also has the advantages that lon Beam Assisted Deposition.





4. Vacuum pumping system, electric control system and complete vacuum coating system can be



customized according to user requirements.






Product Name




Hardware Mulit Arc Ion PVD Vacuum Coating Machine With Rainbow Color




Vacuum Chamber Size

Decide according to the substrate size and output
Substrate
Hardware,glass crafts,ceramic crafts,such us watches,mobile phone metal

shell,sanitary ware,mould,electronic products,crystal glass, glasses, cutlery, knives

and so on



Coating Film

High-grade decorative coating.
Coating Color
Gold, rose gold,coffee,brown,bronze,blue,black,white,gray etc.

Applications
Hardware,glass crafts,ceramic crafts such us watches,mobile phone metal

shell,sanitary ware,mould,electronic products,crystal glass, glasses, cutlery,knives

and so on.


Structure
Vertical type ; horizontal type ; single door type ; double-door type.

Coating Material
Stainless steel, aluminum, titanium, tungsten and other metal films may

be manufactured as coated TIN, TIC, TICN, TIALN, CRN, CU, AU, diamond film

(DLC), decorative film metal, film and non-metallic composite coating film and its

compounds film.


Features
High pumping speed, high efficiency, energy saving, full automatic process

controller can be simple, reliable, beautiful.

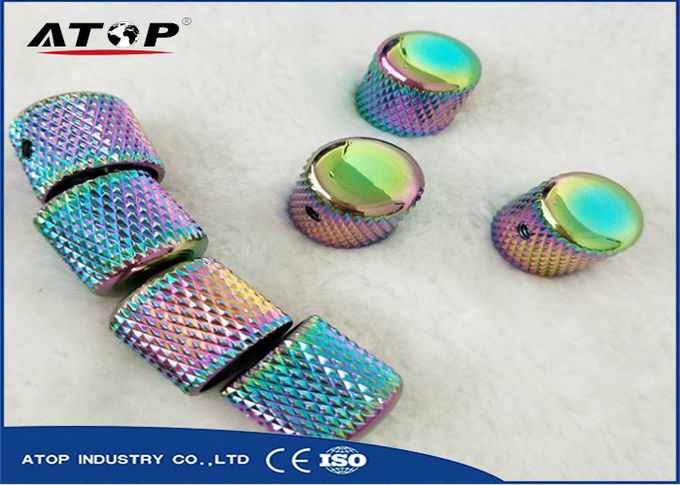

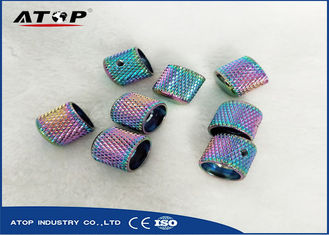

Coating Samples


SUS304 Hardware Mulit Arc Ion PVD Vacuum Coating Machine With Rainbow Color
