Product Details:
Payment & Shipping Terms:
|
| Technology: | PVD Coating | Substrate: | Metal, Ceramic, Glass Etc. |
|---|---|---|---|
| Coating Film: | Decoration Film, Function Film | Coating Color: | Gold, Rose Gold, Silver Etc. |
| After Sale Service: | Engineers Avaliable To Service Machinery Oversea | Limited Vacuum Degree: | PVD Coating Machine |
The whole process like vacuum pumping, plasma cleaning, Al film and the SiOx protective film coating,
deflating etc. is all running fully automaticly.
Two doors (optional) with 6-axis (also 8 axis optional) rotation &revolution jig and evaporation motor.
When handle the workpiece in one door. It can upload and unload the workpiece and install AL materials
in another door at the same time. So the production performance is very excellent.
The aluminum deposition adopts resistance heating evaporation source, complex three-dimensional
structure can also be uniform deposited.
SiOx protective film coating system is optional.

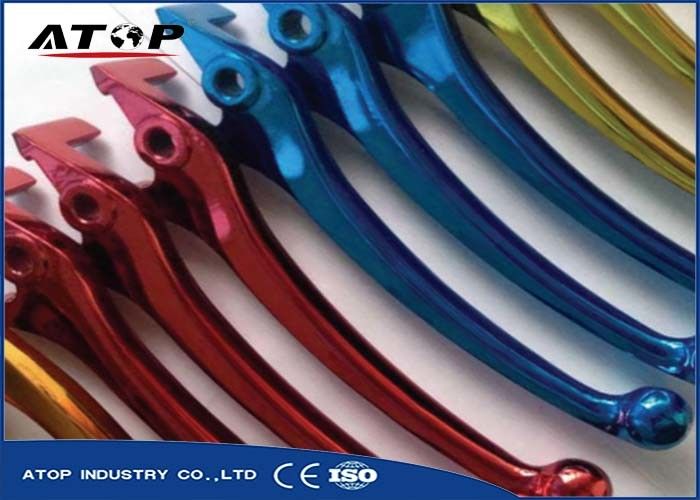

1. It can be widely used to do the decorative coating and function coating on the surface of plastic,
ceramic, glass, resin, candle and metal material.
2. High efficiency, full automatic, integrating the vacuum technology, evaporation coating and
electromechanical integration technology together. Its an ideal equipment to do the high-grade decorative
coating.
3. It can be widely used in Crafts, gifts, hardware appliances, accessories and electronics, machinery, light
industry and other industries.
When the evaporation materials such as aluminum wire installed in high-resistance materials, Joule heat
generated by the current under high temperature, evaporation material instantly evaporated vapor China
to migrate to the surface of the substrate, the deposition film.
1. Variety of structure : vertical type ; horizontal type ; single door type ; double-door type.
2. Equipped with 1-2 sets new model evaporation electrode, easy installation and discharge, convenient
maintenance. Work rack flexible and reliable by public rotation of gear transmission structure.
3. Reasonable configuration for the vacuum system. High pumping speed, high efficiency, energy saving,
full automatic process controller can be simple, reliable, beautiful.
|
Product Name |
ATOP PVD Plastic Metallization/Plastic PVD Coating Machine/Plastic Plating
Equipment
|
|
|
Decide according to the substrate size and output |
|
Substrate |
|
|
|
High-grade decorative coating and function coating |
|
Coating Color |
|
|
Applications |
|
|
Structure |
|
|
Coating Material |
be manufactured as coated TIN, TIC, TICN, TIALN, CRN, CU, AU, diamond film |
|
Features |
|
