Product Details:

Place of Origin: China
Brand Name: ATOP
Certification: ISO9001
Model Number: PVD coating machine

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: By negotiation
Packaging Details: In film
Delivery Time: 60working days
Payment Terms: L/C, T/T
Supply Ability: 200 sets/year
Contact Now
Detailed Product Description
Technology: PVD Lens Coating Substrate: Glass Lens,acrylic,crystal Ornaments,etc.
Coating Film: Reflective Film,protection Film,etc Coating Color: Gold, Rose Gold, Silver,rainbow Etc.
After Sale Service: Engineers Avaliable To Service Machinery Oversea Limited Vacuum Degree: 8*10-4Pa





ATOP Plastic Window Panels Evaporation PVD Vacuum Coating Machine / Equipment







Configuration



The machine is consist of vacuum chamber, Work piece carrier,vacuum pumping system, bias power


supply, coating system, gas system, heating system,working system,control system,alarm system and


electron gun,evaporation source.





Operational principle



Electron beam evaporation is that the membrane is put into the water-cooled copper crucible, heated by


direct use of electron beam, the vaporized atoms or molecules of membrane material is condensed to a


mould by incidence to the surface of the substrate after escaping from the surface evaporation. Electron


beam evaporation has high thermal efficiency, beam density, evaporation speed, high purity of film made


than the resistance heating evaporation.





Machine Introduction



The machine is controlled by industry touch screen and PLC and can be manual controlled, half auto

controlled or auto controlled. Vacuum pumping, coating and gas inflating is controlled by main controlling

box. The machine will alarm by sound and flashing light when the cooling water and electric power supply

is cut off or the cooling water current is not enough for system cooling. All pumps and valves have inter-

locked function to avoid wrong operation for machine safety.








Application Field



Mainly used for glass lens,acrylic,crystal ornaments,plastic panels,resin material.This equipment can coat

diamond with colorful decoration film,reflective film,coating,uv protection film,reflective film,filter

membrane,beam splitters,dielectric film and so on

Very large scale film and multi-layer film can be realized.The machine can meet the requirement of

reflective glass,binoculars,glass lens,optical lens,light cup,the silver film,AF film products of phone screen.




Main Feature





Product Name




ATOP Plastic Window Panels Evaporation PVD Vacuum Coating Equipment




Vacuum Chamber Size


Decide according to the substrate size and output
Substrate


Glass,plastic,etc


Coating Film


Can coat diamond with colorful decoration film, reflective film, coating, uv

protection film, reflective film, filter membrane, beam splitters, dielectric film and so

on. Very large scale film and multi-layer film can be realized.


Coating Material


The machine can meet the requirement of reflective glass, binoculars, glass lens,

optical lens, light cup, the silver film, AF film products of phone screen



Applications


Glass lens, acrylic, crystal ornaments, plastic panels, resin material.



1.The traditional vertical or efficient horizontal,equipped with large crucible gun,the film surface is smooth

and uniformity;

2.Equipped with high-power ion source,improve the coating quality and efficiency;

3.Equipped quartz crystal film thickness control device,can realize the film forming rate and automatic

process control;

4.The design of structure can meet the demands of vacuum technology,vacuum system adopt free-oil

system to ensure the whole system work under no oil condition,ensure film clean;

5.The vacuum interlock protection of operating system,vacuum pump with water,power outage alarm

function;

6.Touch screen and PLC control,realize the parametric settings,real-time monitoring and intelligent fault

diagnosis.

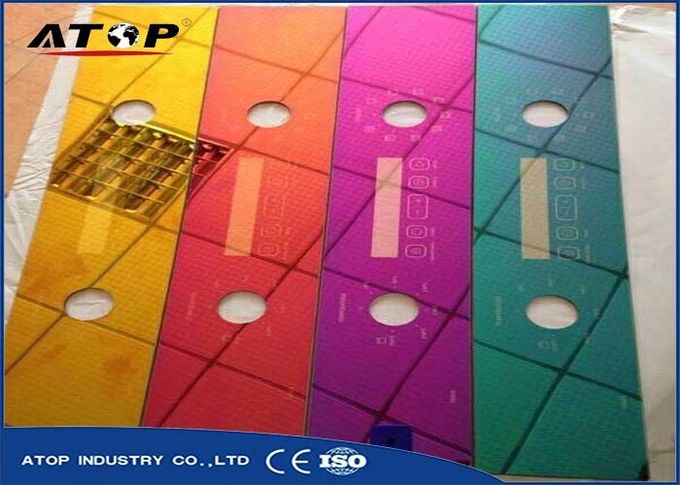

Coating Samples



ATOP Plastic Window Panels Evaporation PVD Vacuum Coating Machine / Equipment
