ATOP Silver Aluminum Glass Mirror Magnetron Sputtering Vacuum Metalizing Machine

Certification
Good quality PVD Coating Machine for sales
I'm Online Chat Now

ATOP Silver Aluminum Glass Mirror Magnetron Sputtering Vacuum Metalizing Machine

China ATOP Silver Aluminum Glass Mirror Magnetron Sputtering Vacuum Metalizing Machine supplier
ATOP Silver Aluminum Glass Mirror Magnetron Sputtering Vacuum Metalizing Machine supplier ATOP Silver Aluminum Glass Mirror Magnetron Sputtering Vacuum Metalizing Machine supplier

Large Image :  ATOP Silver Aluminum Glass Mirror Magnetron Sputtering Vacuum Metalizing Machine

Product Details:

Place of Origin: China
Brand Name: ATOP
Certification: ISO9001
Model Number: ATZK

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: By negotiation
Packaging Details: In film
Delivery Time: 60working days
Supply Ability: 200 sets/year
Contact Now
Detailed Product Description
Certification: ISO,CE Condition: New
Coating Color: Gold,rose Gold,brown,bronze,blue,black,etc After Sale Service: Engineers Avaliable To Service Machinery Oversea
Warranty: 12 Months Technology: Magnetron Sputtering

ATOP Silver Aluminum Glass Mirror Magnetron Sputtering Vacuum Metalizing Machine





Machine Introduction



This equipment can produce a kind of coated glass products, which has a function of sunshade,

insulation, energy conservation and decoration, by the use of cylindrical magnetron sputtering target

technology and high-precision power supply in flat glass. By adjusting the size of current, gas flow, the

speed of target movement, you can get different products with different transmission layer, which are

mainly used for the decoration of large-scale construction curtain walls and balconies.







Equipment Configuration





Vacuum coating machine is the most environmental and friendly surface treatment machine without waste


and harmful gas and liquid.


The specific configuration of coating machine can be designed according to process requirements of


coating products.


Vacuum coating machine make the metal deposition on surface of the product,make the it colorful,


beautiful,function Strong adhesion , good compactness, well repeatability and consistence of color.




Structure type:Vertical type or horizontal type

Chamber type:single door or double doors




Main Feature



1. It equipments cryogenic ion secondary source, some substrate without heating the material, It

can directly do the cold plating film at room temperature, save energy, increase productivity.


2. The maximum of the temperature for tool coating chamber can 600 degrees, In addition to the tool

Coater coating applications require heating device, other applications do not need the device.


3. High deposition rate, High coating speed, It can be widely used to do the decorative coating, functional

coating on a variety of products. So it is a ideal equipment to do the high-grade and best coating for mass

production.


4. Magnetron sputtering principle is based on the theory of the cathode glow discharge, it expend the

cathode surface magnetic field near the work piece surface. Then it improves the sputtered atom

ionization rate. It keeps the magnetron sputtering uniformity, also can improve the surface shining effect.


5. The arc plasma evaporation source is reliable, it can work under 40A current in optimizing the cathode

and the magnetic field structure,. It will happen atomic diffusion between the coating and the material. It

also has the advantages that lon Beam Assisted Deposition.


6. Vacuum pumping system, electric control system and complete vacuum coating system can be

customized according to user requirements.



Product Name



ATOP Silver Aluminum Glass Mirror Magnetron Sputtering Vacuum Metalizing

Machine



Vacuum Chamber Size

Decide according to the substrate size and output
Substrate


Hardware,glass crafts,ceramic crafts,such us watches,mobile phone metal


shell,sanitary ware,mould,electronic products,crystal glass, glasses, cutlery, knives


and so on



Coating Film

High-grade decorative coating.
Coating Color
Gold, rose gold,coffee,brown,bronze,blue,black,white,gray etc.

Applications


Hardware,glass crafts,ceramic crafts such us watches,mobile phone metal


shell,sanitary ware,mould,electronic products,crystal glass, glasses, cutlery,knives


and so on.


Structure
Vertical type ; horizontal type ; single door type ; double-door type.

Coating Material


Stainless steel, aluminum, titanium, tungsten and other metal films may


be manufactured as coated TIN, TIC, TICN, TIALN, CRN, CU, AU, diamond film


(DLC), decorative film metal, film and non-metallic composite coating film and its


compounds film.


Features


High pumping speed, high efficiency, energy saving, full automatic process


controller can be simple, reliable, beautiful.

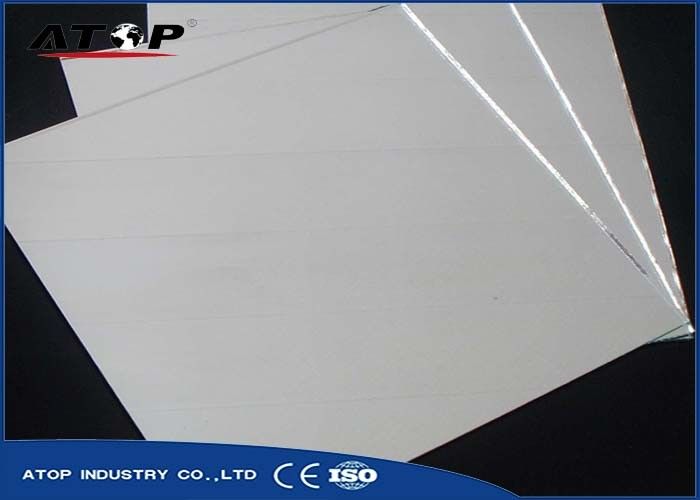

Coating Samples


ATOP Silver Aluminum Glass Mirror Magnetron Sputtering Vacuum Metalizing Machine
