ATOP Fine Gold Vacuum Coating Machine On The Surface Of ABS/PC Plastic Products

China ATOP Fine Gold Vacuum Coating Machine On The Surface Of ABS/PC Plastic Products supplier
ATOP Fine Gold Vacuum Coating Machine On The Surface Of ABS/PC Plastic Products supplier ATOP Fine Gold Vacuum Coating Machine On The Surface Of ABS/PC Plastic Products supplier

Large Image :  ATOP Fine Gold Vacuum Coating Machine On The Surface Of ABS/PC Plastic Products

Product Details:

Place of Origin: China
Brand Name: ATOP
Certification: ISO9001
Model Number: ATZK

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: By negotiation
Packaging Details: In film
Delivery Time: 60working days
Payment Terms: L/C, T/T
Supply Ability: 200 sets/year
Contact Now
Detailed Product Description
Technology: Vacuum Coating Substrate: Metal, Ceramic, Glass Etc.
Coating Film: Vacuum Coating Machine Coating Color: Gold, Rose Gold, Silver Etc.
After Sale Service: Engineers Avaliable To Service Machinery Oversea Limited Vacuum Degree: 8*10-4Pa

ATOP Fine Gold Vacuum Coating Machine On The Surface Of ABS/PC Plastic Products





Normal working conditions of the machine





(1). Power supply: five-wire three-phase, 380V±5%, 50Hz, with ground resistance<5Ω





(2). Compressed air : 0.5~0.7Mpa





(3). Cooling water can use city tap water, deionized water is best. Temperature of cooling water should



less than 25℃. Water pressure should be 0.2Mpa to 0.4Mpa. And the water resource should have the



ability to add new water in rate more than one hundred liter per minute.





(4). Environmental condition: Floor, ceiling and walls should be clean. Indoor air should be clean, dry and



no-dust. No flammable, explosive and corrosive gas indoors.





(5). Coating air: Ar2 high purity(≥99.99%)





Operational principle




When the evaporation materials such as aluminum wire installed in high-resistance materials, Joule heat



generated by the current under high temperature, evaporation material instantly evaporated vapor China



to migrate to the surface of the substrate, the deposition film.



It is equipped with a low-temperature auxiliary ion beam source


1. It has a large area of plasma discharge, high ionization effects, improve bond strength, adhesion



particularly strong.




2. The ion are distributed evenly, which greatly improves the stability and uniformity of the film.




3. The ionization effect is good, coated plastic, resin, acrylic and other products can be easily coated with



the film.




4. Give full play to the ionization effect, plastics do not spray primer, directly on the plastic coating.




Main Feature


1. Variety of structure : vertical type ; horizontal type ; single door type ; double-door type.





2. Equipped with 1-2 sets new model evaporation electrode, easy installation and discharge, convenient



maintenance. Work rack flexible and reliable by public rotation of gear transmission structure.





3. Reasonable configuration for the vacuum system. High pumping speed, high efficiency, energy saving,



full automatic process controller can be simple, reliable, beautiful.







Product Name





ATOP Fine Gold Vacuum Coating Machine On The Surface Of ABS/PC Plastic Products





Vacuum Chamber Size



Decide according to the substrate size and output

Substrate



Plastic,ceramic,glass,resin,candle and metal material.





Coating Film



High-grade decorative coating and function coating

Coating Color



Gold, rose gold,coffee,brown,bronze,blue,black,white,gray etc.



Applications



Crafts, gifts, hardware appliances, accessories and electronics, machinery, light



industry and other industries.



Structure



Vertical type ; horizontal type ; single door type ; double-door type.



Coating Material



Stainless steel, aluminum, titanium, tungsten and other metal films may


be manufactured as coated TIN, TIC, TICN, TIALN, CRN, CU, AU, diamond film



(DLC), decorative film metal, film and non-metallic composite coating film and its



compounds film.



Features



High pumping speed, high efficiency, energy saving, full automatic process



controller can be simple, reliable, beautiful.







Application Field





1. It can be widely used to do the decorative coating and function coating on the surface of plastic,



ceramic, glass, resin, candle and metal material.





2. High efficiency, full automatic, integrating the vacuum technology, evaporation coating and



electromechanical integration technology together. Its an ideal equipment to do the high-grade decorative



coating.





3. It can be widely used in Crafts, gifts, hardware appliances, accessories and electronics, machinery, light



industry and other industries.

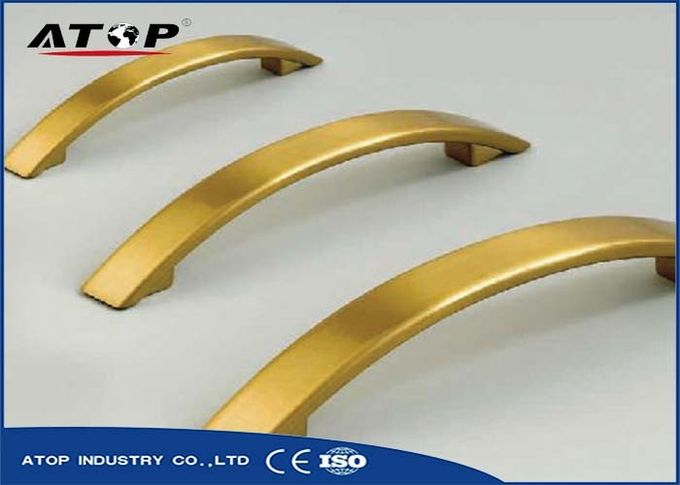

Coating Samples







ATOP Fine Gold Vacuum Coating Machine On The Surface Of ABS/PC Plastic Products
