ATOP Brass Chrome Plating Multi Arc Ion Vacuum PVD Coating Equipment






1. The electric control system shall set up circuit overload, water breaking and sound alarm device of the



broken air;





2. Control system (touch screen + PLC), display detailed parameters in real time, fully automatic control of



the entire production process, and automatic storage of process parameters.





3, the coating chamber, valves and piping are made of stainless steel ,vacuum chamber size from Φ500



mm to Φ2000 mm.





4. The vacuum system consists of mechanical pump, rotary vane pump, roots pump and cold well high



vacuum oil diffusion pump or molecular pump;





5. The coating system adopts multiple flat target or cylindrical target, with multiple dc power or medium



frequency power supply.





6. The auxiliary pumping system adopts a low-temperature water vapor trap;















1. Rapid deposition rate and small temperature rise can inhibit the phenomenon of fire and target



poisoning.





2. The high energy emitted by sputtering has significantly enhanced the membrane density and adhesion.





3. The touch screen +PLC can achieve full automatic control, automatic/manual switching;





4. Large volume, large loading capacity and high production efficiency.





5. The workpiece frame adopts the public rotation structure, which can set the automatic positive and



backward rotation, and the product is even good;





6. Reasonable configuration, quick pumping rate, low noise, low energy consumption;





7. The film layer deposited by this equipment can meet customer requirements in terms of density,



uniformity, purity and hardness

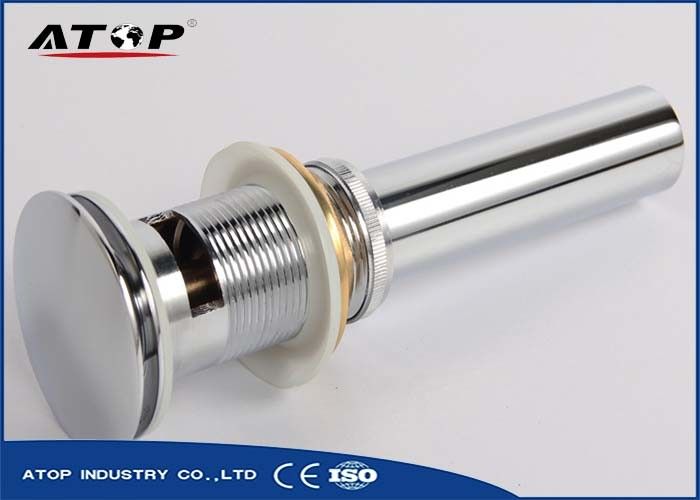

It applies to hardware,glass crafts,ceramic crafts,such us watches,mobile phone metal shell,sanitary

ware,mould,electronic products,crystal glass, glasses, cutlery, knives and so on.

You can make super-hard wear-resistant film coating, anti-corrosion film, decorative film(gold color,rose

gold,coffee,brown,bronze,blue,black,white,gray and other colors),it combined with magnetron sputtering

technique can be plated the multilayer composite membrane and manufactured plated stainless steel,

aluminum, titanium, tungsten and other metal films may be manufactured as coated TIN, TIC, TICN, TIALN,

CRN, CU, AU, diamond film (DLC), decorative film metal, film and non-metallic composite coating film and

its compounds film.
