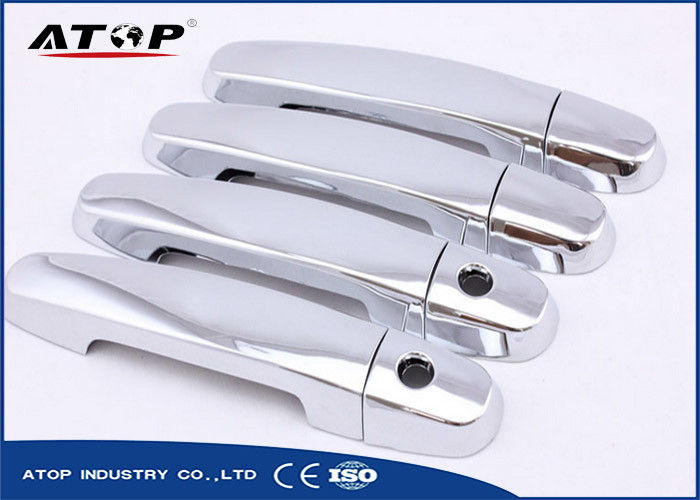

ATOP Auto Spare Parts Chrome Plating PVD Vacuum Coating Machine

1. Vacuum pumping system, electric control system and complete vacuum coating system can be

customized according to user requirements.

2. It equipments cryogenic ion secondary source, some substrate without heating the material, It

can directly do the cold plating film at room temperature, save energy, increase productivity.

3. The maximum of the temperature for tool coating chamber can 600 degrees, In addition to the tool

Coater coating applications require heating device, other applications do not need the device.

4. High deposition rate, High coating speed, It can be widely used to do the decorative coating, functional

coating on a variety of products. So it is a ideal equipment to do the high-grade and best coating for mass

production.

5. Magnetron sputtering principle is based on the theory of the cathode glow discharge, it expend the

cathode surface magnetic field near the work piece surface. Then it improves the sputtered atom

ionization rate. It keeps the magnetron sputtering uniformity, also can improve the surface shining effect.

6. The arc plasma evaporation source is reliable, it can work under 40A current in optimizing the cathode

and the magnetic field structure,. It will happen atomic diffusion between the coating and the material. It

also has the advantages that lon Beam Assisted Deposition.

1.The coating chamber, valves and piping are made of stainless steel vacuum chamber effective diameter

from Φ500 mm to Φ2000 mm.

2. The vacuum system consists of mechanical pump, rotary vane pump, rotz pump and a cold well high

vacuum oil diffusion pump or molecular pump.

3. The coating system adopts multiple flat target or cylindrical target, with multiple dc power or medium

frequency power supply.

4. The auxiliary pumping system adopts a low-temperature water vapor trap.

5. The gas flow meter and flow control (display) control of the pneumatic system are adopted.

6. The electric control system shall set up circuit overload, water breaking and sound alarm device of the

broken air.

7. Control system (touch screen + PLC), display detailed parameters in real time, fully automatic control of

the entire production process, and automatic storage of process parameters.

8. The equipment is equipped with high power bias system and the ionizing source auxiliary deposition

coating.
