Full Automatic PVD Coating Equipment For Plastic Signs / Logo Decorative Film

Certification
Good quality PVD Coating Machine for sales
I'm Online Chat Now

Full Automatic PVD Coating Equipment For Plastic Signs / Logo Decorative Film

China Full Automatic PVD Coating Equipment For Plastic Signs / Logo Decorative Film supplier
Full Automatic PVD Coating Equipment For Plastic Signs / Logo Decorative Film supplier Full Automatic PVD Coating Equipment For Plastic Signs / Logo Decorative Film supplier

Large Image :  Full Automatic PVD Coating Equipment For Plastic Signs / Logo Decorative Film

Product Details:

Place of Origin: China
Brand Name: ATOP
Certification: ISO9001
Model Number: ATZF

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: By negotiation
Packaging Details: in Film
Delivery Time: 60working days
Payment Terms: L/C, T/T
Supply Ability: 200 sets/year
Contact Now
Detailed Product Description
Business Type: PVD Coating Machine Chamber Material: SUS304
Warranty: 12 Months Voltage: 380V
After Sale Service: Engineers Avaliable To Service Machinery Oversea Substrate: Plastic, Ceramic,glas,resin,candle And Metal Material,etc

ATOP Plastic Signs/Logo Decorative Film Evaporation PVD Coaitng Machine




Application Field





1.It can be widely used in crafts,gifts,hardware appliances,accessories and electronics,machinery,light



industry and other industries.





2.This Evaporation Vacuum Coating could match with UV base coating and UV top coating for kinds of



high standard beatiful decorative coating and function caoting on plastic, ceramic,glass,resin,candle and



metal material.





3.High efficiency,full automatic,integrating the vacuum technology,evaporation caoting and



electromechanical integration technology together,Its an ideal equipment to do the high-grade decorative



coating.







Basic configuration



1.Variety of structures, such as: vertical type, horizontal type, single door, two-door, SUS 304 or carbon



steel manufacturing, vacuum chamber size from Φ600 mm to Φ2200 mm.





2. The vacuum system consists of mechanical pump, rotary vane pump, roots pump and a cold well high



vacuum oil diffusion pump, or energy saving, pollution-free, noiseless, high efficiency molecular pump



composition;





3. The coating system adopts 1--2 sets of new structure copper electrode resistance evaporation system



and power supply;





4. A low temperature water vapor trap can be used for the auxiliary pumping system;





5. The electric control system shall set up circuit overload, water breaking, and acoustic alarm device;





6. Control system (touch screen + PLC), display detailed parameters in real time, fully automatic control of





the entire production process, and automatic storage of process parameters.



Product Name



ATOP Plastic Signs/Logo Decorative Film Evaporation PVD Coaitng Machine





Vacuum Chamber Size



Decide according to the substrate size and output
Substrate



Crafts,Gifts,Hardware appliances,etc.Main for plastic, with UV base coating and



top coating





Coating Film



High-grade decorative coating.
Coating Color



Gold, rose gold,coffee,brown,bronze,blue,black,white,gray etc.





Applications



Hardware,glass crafts,ceramic crafts such us watches,mobile phone metal



shell,sanitary ware,mould,electronic products,crystal glass, glasses, cutlery,



knives and so on.



Structure



Vertical type ; horizontal type ; single door type ; double-door type.



Features



Equipped with 1-2 sets new model evaporation electrode, easy installation and



discharge, convenient maintenance. Work rack flexible and reliable by public



rotation of gear transmission structure.



Configuration



High pumping speed, high efficiency, energy saving, full automatic process



controller can be simple, reliable, beautiful.









Main Feature





1.Equipped with 1-2 sets new model evaporation electrode,easy installation and discharge,convenient



maintenance.Work rack flexible and reliable by public rotation of great transmission structure.




2.Reasonable configuration for the vacuum system.High pumping speed,high efficiency,energy saving,full



automatic process controller can be simple,reliable,beautiful.





3.Variety of structure:vertical type;horizontal type;single door type;double-door type.

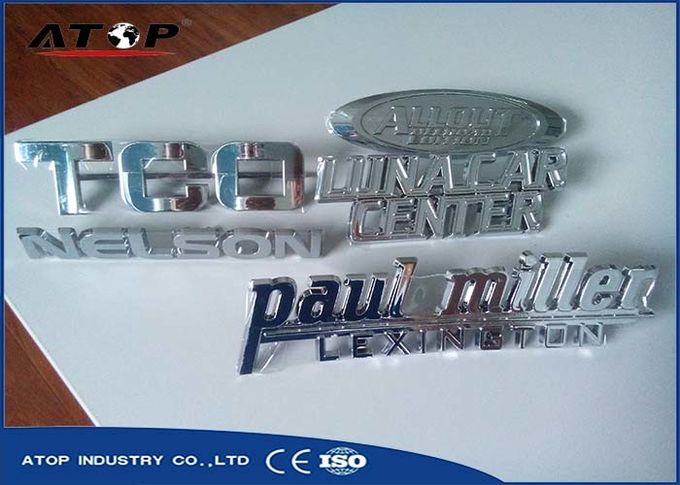

Coating Samples





Full Automatic PVD Coating Equipment For Plastic Signs / Logo Decorative Film
