PLC Control PVD Coating Machine / Flow Coating Machine For Metal Hair Scissors

China PLC Control PVD Coating Machine / Flow Coating Machine For Metal Hair Scissors supplier
PLC Control PVD Coating Machine / Flow Coating Machine For Metal Hair Scissors supplier PLC Control PVD Coating Machine / Flow Coating Machine For Metal Hair Scissors supplier

Large Image :  PLC Control PVD Coating Machine / Flow Coating Machine For Metal Hair Scissors

Product Details:

Place of Origin: China
Brand Name: ATOP
Certification: ISO9001
Model Number: ATZK

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: By negotiation
Packaging Details: In film
Delivery Time: 60working days
Payment Terms: L/C, T/T
Supply Ability: 200 sets/year
Contact Now
Detailed Product Description
Business Type: PVD Coating Machine Place Of Origin: Jiangsu, China (Mainland)
Chamber Material: SUS304 Coating Color: Gold, Rose Gold, Silver Etc.
Operating System: PLC Touching Screen Limited Vacuum Degree: 8*10-4Pa

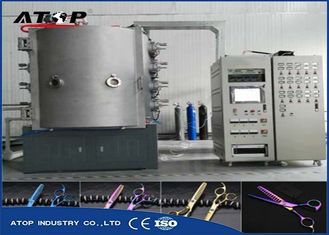

ATOP PVD Vacuum Coating Machine Color Multi Arc Ion Plating For Metal Hair Scissors





Basic Conguration





1, the coating chamber, valves and piping are made of stainless steel vacuum chamber effective diameter



from Φ500 mm to Φ2000 mm;





2. The vacuum system consists of mechanical pump, rotary vane pump, rotz pump and a cold well high



vacuum oil diffusion pump or molecular pump;







3. The auxiliary pumping system adopts a low-temperature water vapor trap;





5. The gas flow meter and flow control (display) control of the pneumatic system are adopted.





6. The electric control system shall set up circuit overload, water breaking and sound alarm device of the



broken air;





7. Control system (touch screen + PLC), display detailed parameters in real time, fully automatic control of



the entire production process, and automatic storage of process parameters.





8. The equipment is equipped with high power bias system and the ionizing source auxiliary deposition



coating.





Application Field



It applies to hardware,glass crafts,ceramic crafts,such us watches,mobile phone metal shell,sanitary

ware,mould,electronic products,crystal glass, glasses, cutlery, knives and so on.

You can make super-hard wear-resistant film coating, anti-corrosion film, decorative film(gold color,rose

gold,coffee,brown,bronze,blue,black,white,gray and other colors),it combined with magnetron sputtering

technique can be plated the multilayer composite membrane and manufactured plated stainless steel,

aluminum, titanium, tungsten and other metal films may be manufactured as coated TIN, TIC, TICN, TIALN,

CRN, CU, AU, diamond film (DLC), decorative film metal, film and non-metallic composite coating film and

its compounds film.








Product Name




ATOP PVD Vacuum Coating Machine Color Multi Arc Ion Plating For Metal Hair



Scissors




Vacuum Chamber Size


Decide according to the substrate size and output

Substrate


Hardware,glass crafts,ceramic crafts,such us watches,mobile phone metal

shell,sanitary ware,mould,electronic products,crystal glass, glasses, cutlery,

knives and so on



Coating Film


High-grade decorative coating.

Coating Color


Gold,rose gold,coffee,brown,bronze,blue,black,white,gray etc.




Applications


Hardware,glass crafts,ceramic crafts .


Structure


Vertical type ; horizontal type ; single door type ; double-door type.


Coating Material


Stainless steel, aluminum, titanium, tungsten and other metal films may


be manufactured as coated TIN, TIC, TICN, TIALN, CRN, CU, AU, diamond film

(DLC), decorative film metal, film and non-metallic composite coating film and its

compounds film.


Features


High pumping speed, high efficiency, energy saving, full automatic process

controller can be simple, reliable, beautiful.

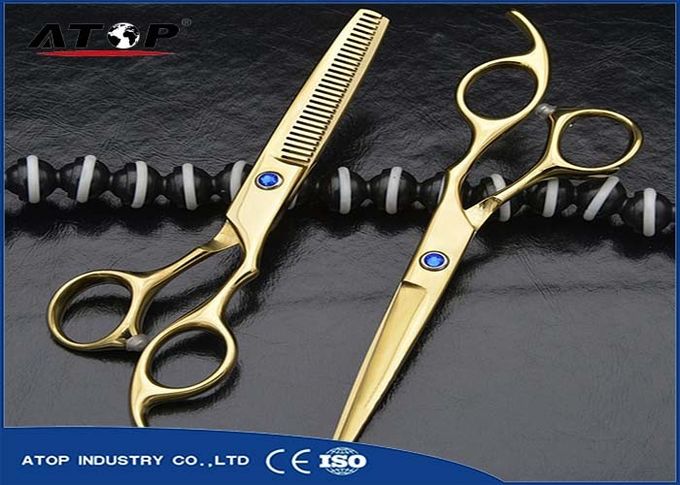

Coating Samples


PLC Control PVD Coating Machine / Flow Coating Machine For Metal Hair Scissors
