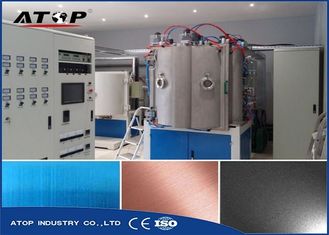

Functional PVD Coating Machine With Circuit Overload And Water Breaking Device

China Functional PVD Coating Machine With Circuit Overload And Water Breaking Device supplier
Functional PVD Coating Machine With Circuit Overload And Water Breaking Device supplier Functional PVD Coating Machine With Circuit Overload And Water Breaking Device supplier

Large Image :  Functional PVD Coating Machine With Circuit Overload And Water Breaking Device

Product Details:

Place of Origin: China
Brand Name: ATOP
Certification: ISO9001
Model Number: ATZK

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: By negotiation
Packaging Details: In film
Delivery Time: 60working days
Supply Ability: 200 sets/year
Contact Now
Detailed Product Description
Substrate: Hardware,glass Crafts,ceramic Crafts,etc Certification: ISO,CE
Control System: PVD Coating Machine After Sale Service: Engineers Avaliable To Service Machinery Oversea
Customization: Yes Place Of Origin: Jiangsu, China (Mainland)

ATOP Vacuum Coating Machine For Stainless Steel Sheet PVD Vacuum Metalizing



working principle





Magnetron sputtering magnetron sputtering working principle of vacuum coating machine, the so-called



"splash", under the action of the electrons in an electric field accelerates to the substrate in the process of



collision with argon atoms, ionization out large amounts of argon ions and electrons.The electron flies



toward the substrate, the argon ion speeds up the target material under the action of the electric field,



sputtering out a large number of target atom, and the neutral target atom (or molecule) is deposited on



the substrate to form the film.Secondary electron in accelerating to fly to the substrate by magnetic field in



the process of lorentz magnetic force, the influence of confined area near the target surface plasma, the



plasma density in the area is very high, secondary electron under the action of magnetic field around the



target surface is circular motion, the electron motion path is very long, constantly in the process of



movement of the impact ionization out large amounts of argon ion bombardment of target, after many



times of collision of the electron energy gradually reduce, cast off the yoke of the magnetic field lines,



away from the target material, the final deposition on the substrate.







Application Field



It applies to hardware,glass crafts,ceramic crafts,such us watches,mobile phone metal shell,sanitary

ware,mould,electronic products,crystal glass, glasses, cutlery, knives and so on.

You can make super-hard wear-resistant film coating, anti-corrosion film, decorative film(gold color,rose

gold,coffee,brown,bronze,blue,black,white,gray and other colors),it combined with magnetron sputtering

technique can be plated the multilayer composite membrane and manufactured plated stainless steel,

aluminum, titanium, tungsten and other metal films may be manufactured as coated TIN, TIC, TICN, TIALN,

CRN, CU, AU, diamond film (DLC), decorative film metal, film and non-metallic composite coating film and

its compounds film.






Product Name


ATOP Vacuum Coating Machine For Stainless Steel Sheet PVD Vacuum Metalizing


Vacuum Chamber Size

Decide according to the substrate size and output
Substrate
Hardware,glass crafts,ceramic crafts,such us watches,mobile phone metal

shell,sanitary ware,mould,electronic products,crystal glass, glasses, cutlery, knives

and so on



Coating Film

High-grade decorative coating.
Coating Color
Gold, rose gold,coffee,brown,bronze,blue,black,white,gray etc.

Applications
Hardware,glass crafts,ceramic crafts such us watches,mobile phone metal

shell,sanitary ware,mould,electronic products,crystal glass, glasses, cutlery,knives

and so on.


Structure
Vertical type ; horizontal type ; single door type ; double-door type.

Coating Material
Stainless steel, aluminum, titanium, tungsten and other metal films may

be manufactured as coated TIN, TIC, TICN, TIALN, CRN, CU, AU, diamond film

(DLC), decorative film metal, film and non-metallic composite coating film and its

compounds film.


Features
High pumping speed, high efficiency, energy saving, full automatic process

controller can be simple, reliable, beautiful.









Main Feature



1. It equipments cryogenic ion secondary source, some substrate without heating the material, It

can directly do the cold plating film at room temperature, save energy, increase productivity.

2. The maximum of the temperature for tool coating chamber can 600 degrees, In addition to the tool

Coater coating applications require heating device, other applications do not need the device.

3. High deposition rate, High coating speed, It can be widely used to do the decorative coating, functional

coating on a variety of products. So it is a ideal equipment to do the high-grade and best coating for mass

production.

4. Magnetron sputtering principle is based on the theory of the cathode glow discharge, it expend the

cathode surface magnetic field near the work piece surface. Then it improves the sputtered atom

ionization rate. It keeps the magnetron sputtering uniformity, also can improve the surface shining effect.

5. The arc plasma evaporation source is reliable, it can work under 40A current in optimizing the cathode

and the magnetic field structure,. It will happen atomic diffusion between the coating and the material. It

also has the advantages that lon Beam Assisted Deposition.

6. Vacuum pumping system, electric control system and complete vacuum coating system can be

customized according to user requirements.

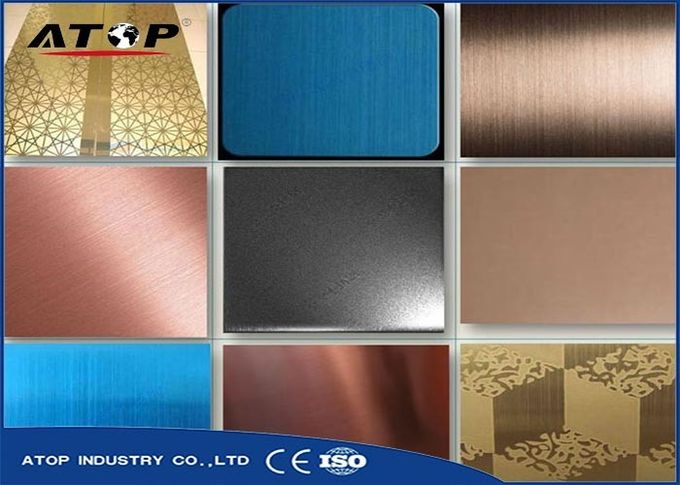

Coating Samples




Functional PVD Coating Machine With Circuit Overload And Water Breaking Device
